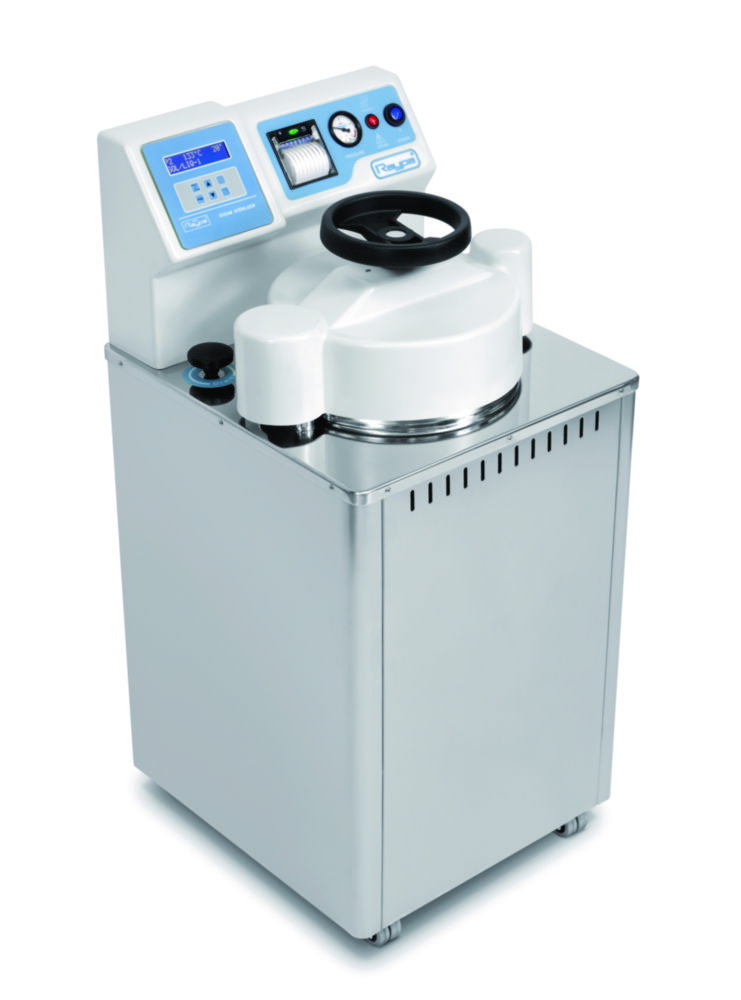

Automatic autoclaves AES-75

Automatic autoclaves AES-75
Manufacturer: R. ESPINAR
SKU: 9.851 895
Delivery date: 14 Business Days
€5832.54 incl tax
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
These autoclaves are microprocessor controlled and monitored with 10 sterilisation programmes of which 4 are fixed and 6 are freely programmable.

  • On request also available with with vacuum pump and steam generator

  • Agar modus (40 °C to 80 °C)

  • RS 232 interface

  • Timer

  • Programmable auto-start (24 h)

  • Fully automatic functions

  • Case and lid shrouding are AISI 304 stainless steel

  • Sterilisation chamber, lid and sealing system are AISI 316 stainless steel

  • Electrical heating with protected heating elements in the interior of the chamber

  • Safety pressure valve

  • Safety thermostat

  • Automatic steam controlled by microprocessor

  • Manual valves for emptying the sterilisation chamber and for draining steam
Products specifications
Attribute nameAttribute value
Dimensions (WxH)400 x 600 mm
Ext. dim. <br>(WxDxH)610 x 700 x 1,185 mm
Ext. depth700 mm
Ext. height1185 mm
Ext. width610 mm
Power supply <br>frequency50/60 Hz
Heating capacity3200 W
Height int.600 mm
Int. Ø400 mm
LoadingVertical
Max. temperature134 &deg;C
Max. voltage230 V
Min. temperature100 &deg;C
Nominal capacity75 l
Power supply230 V, 50/60 Hz
Temperature100 ... 134 °C
TypeAES-75
Type of <br>auxiliary energyMains connection
Weight98 kg
