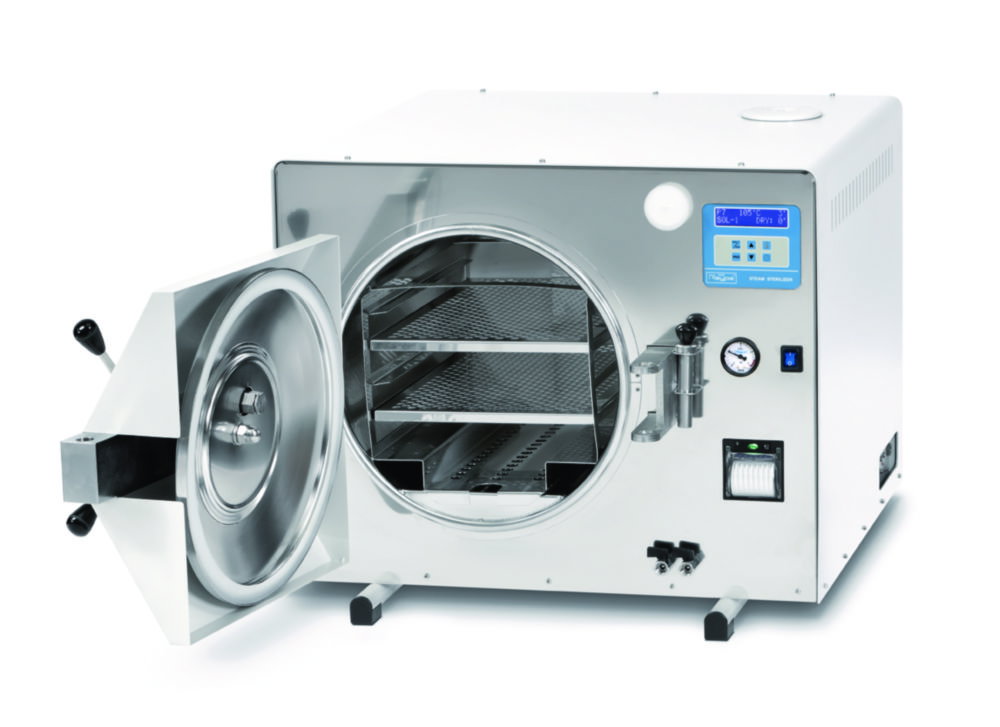

Automatic autoclaves AHS-75-DRY

Automatic autoclaves AHS-75-DRY
Manufacturer: R. ESPINAR
SKU: 9.851 888
Delivery date: 14 Business Days
€8588.77 incl tax
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
This autoclave is microprocessor controlled and monitored with 10 sterilisation programmes of which 4 are fixed and 6 are freely selectable and has bacteriological filters included by default.
  • Operating temperature range 100 °C to 134 °C
  • On request, also available with B Class
  • RS 232 interface
  • Fully automatic functions
  • With water reservoir, pre-vacuum and drying
  • Case and lid shrouding are AISI 304 stainless steel
  • Sterilisation chamber, lid and sealing system are AISI 316 stainless steel
  • Electrical heating with protected heating elements
  • Safety pressure valve
  • Safety thermostat
  • Automatic steam controlled by Touch Screen microprocessor
  • Manual valves for emptying the sterilisation chamber and for draining steam
  • Equipped with mesh stand on the chamber base and trays
  • Supply requirements: 230 V 16 A single phase
Products specifications
Attribute nameAttribute value
Depth int.600 mm
Dim. Int.<br>(Ø x H)360 x 600 mm
Ext. dim. <br>(WxDxH)805 x 1,005 x 650 mm
Ext. depth1005 mm
Ext. height650 mm
Ext. width805 mm
Power supply <br>frequency50/60 Hz
Heating capacity3200 W
Int. Ø360 mm
LoadingHorizontal
Material housingStainless steel
Material interiorStainless steel
Max. temperature134 &deg;C
Max. voltage230 V
Min. temperature100 &deg;C
Nominal capacity75 l
Power supply230 V, 50/60 Hz
Temperature100 ... 134 °C
TypeAHS-75 DRY
Type of <br>auxiliary energyMains connection
Weight126 kg
