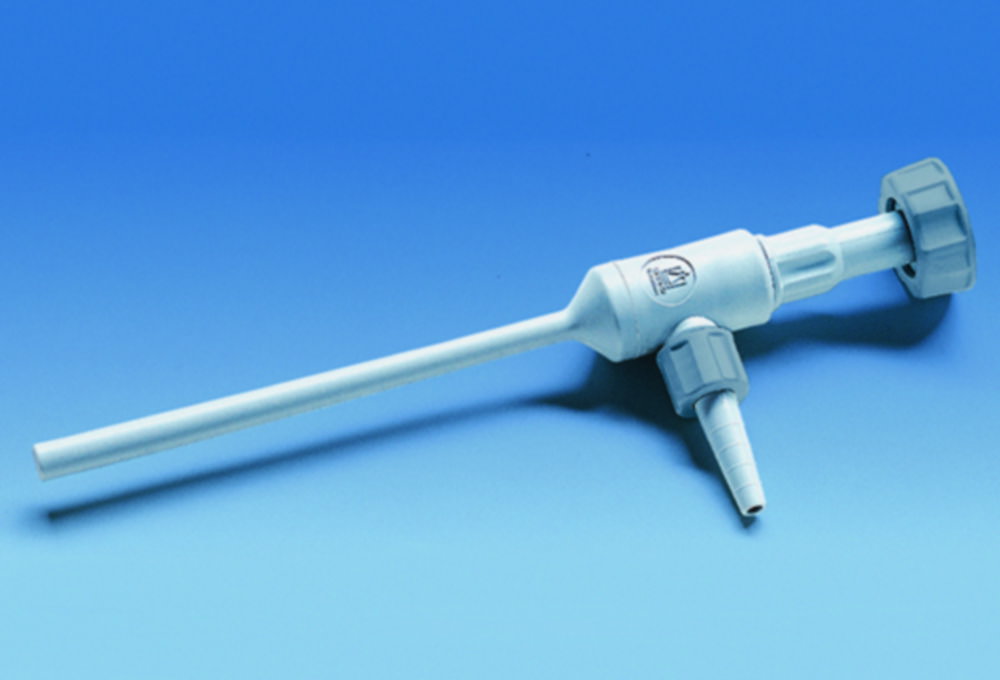

BRAND Water Jet Pump PP Ultimate Pressure 16 mbar

The BRAND Water Jet Pump, constructed from high-quality polypropylene (PP), is designed to achieve an ultimate pressure of 16 mbar. This pump offers a consistent vacuum, high suction flow rate, and minimal water consumption, making it ideal for various laboratory applications. It can be connected to mains water systems using the included adapter and optional reducing adapters. Suitable for continuous use at temperatures up to 80 °C, the pump exhibits high chemical resistance, with media contact limited to PP, FKM, and PTFE components. An integral non-return valve enhances operational safety. The pump's length is approximately 210 mm.

Key Features:

• Brand: BRAND
• Material: High-quality polypropylene (PP) ensuring chemical resistance
• Ultimate Pressure: Achieves up to 16 mbar
• Temperature Tolerance: Suitable for continuous use up to 80 °C
• Water Consumption: Efficient usage at 220 l/h
• Safety: Equipped with an integral non-return valve
• Dimensions: Approximately 210 mm in length

Scope of Supply:

• Water jet pump
• Water connections (R ¾" sleeve nut, R ½" reducing adapter, and flexible tubing connection (nozzle) with external diameter from 10 mm to 12 mm)
• Suction line connection (detachable nozzle with external diameter from 6 mm to 9 mm, GL 14 screw cap)

This water jet pump is an essential tool for laboratories requiring efficient and reliable vacuum generation with high chemical resistance and safety features.
