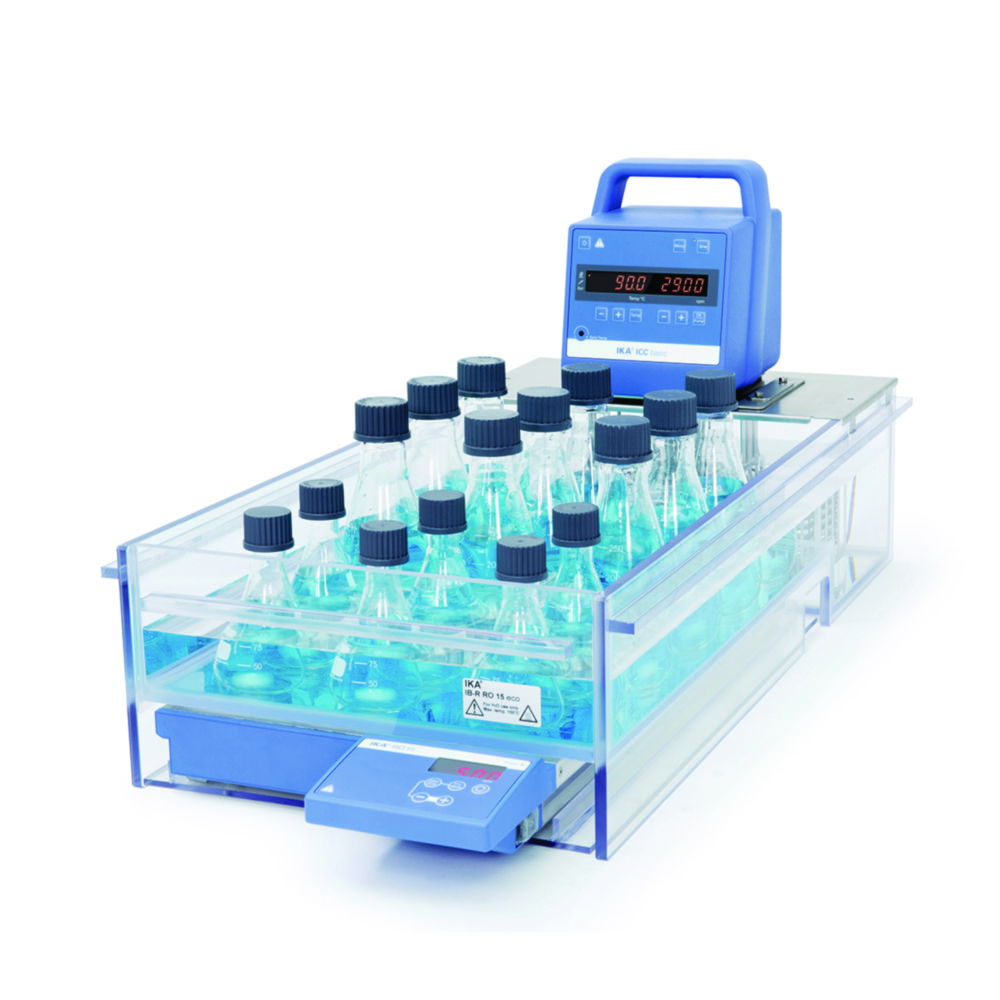

Compact Immersion Circulator ICC basic IB R RO 15 eco Package with magnetic stirrer RO 15 and bath

Compact Immersion Circulator ICC basic IB R RO 15 eco Package with magnetic stirrer RO 15 and bath
Manufacturer: IKA
Complete, ready-to-connect temperature control systems with immersion circulator, multi-position magnetic stirrer, plastic bath and bath bridge. For liquid temperature control and stirring tasks in open plastic bath tanks up to a temperature of 80 °C. The thermostat is suitable for internal and external applications. With visual and acoustic warning functions for excess temperature, sub-level and over-level level, adjustable safety circuit and USB/RS 232 interface. An external cooling coil can be connected to the circulators for temperatures down to -20 °C. Can be calibrated.

The digital magnetic stirrer included in each set has 15 stirring points for glass vessels with a volume of up to 250 ml each. It is equipped with adjustable reverse operation, wear-free magnetic coils and is suitable for continuous operation. The stirrer is controlled via a touch keypad.

The set contains the ICC basic compact immersion circulator with integrated pressure and suction pump, carrying handle and stand. It is controlled via an LED display as well as push and turn buttons.
This product is sold out
Products specifications
Attribute nameAttribute value
Bath depth150 mm
Depth opening98 mm
Opening (WxD)317 x 98 mm
Ext. dim. <br>(WxDxH)333 x 700 x 362 mm
Ext. depth700 mm
Ext. height362 mm
Ext. width333 mm
Power supply <br>frequency50/60 Hz
Heating capacity2000 W
IP codeIP 21
Material bathPlastic
Max. delivery <br>pressure0.3 bar
Max. suction pressure0.2 bar
Max. temperature80 &deg;C
Max. voltage230 V
Min. temperature+10 &deg;C
Power supply230 V, 50/60 Hz
Temperature stability0,02 &deg;C
TemperatureRT, RT+10 ... 80 °C
TypeICC basic IB R RO 15 eco
Type of <br>auxiliary energyMains connection
Type of displayLED
UNSPSC41-10-37-06
Weight22.2 kg
Width opening317 mm
