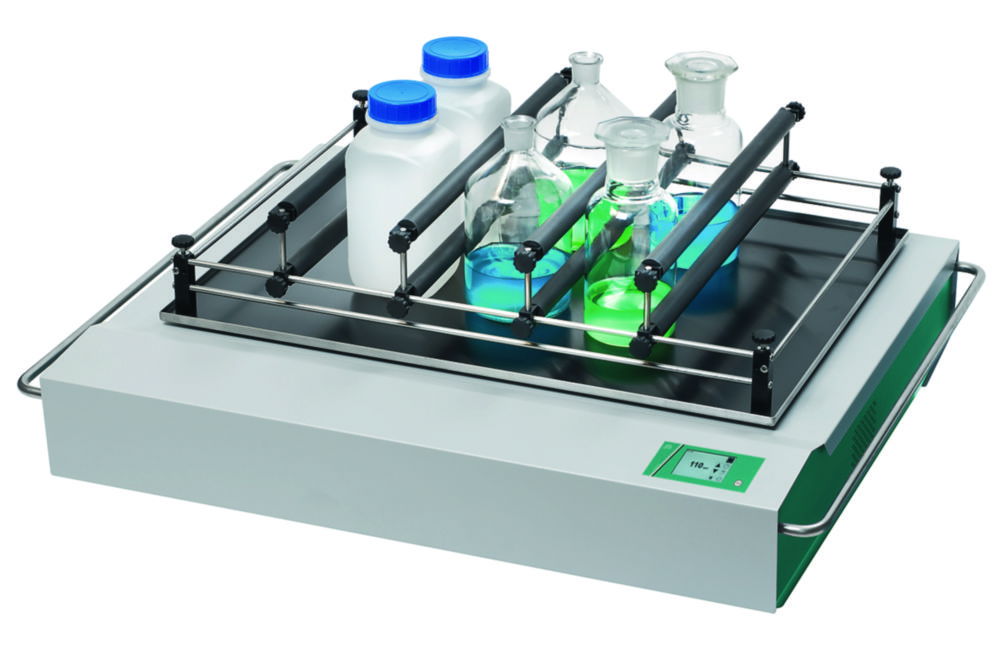

Edmund Bühler Multi-Flask Shaker VKS 75A, Orbital Motion, Speed: 40 – 200 rpm, Platform: 760 x 760 mm Without Platform

Multi-flask shaker VKS 75A orbital motion, speed: 40 - 200 rpm, platform: 760x760 mm, without platform
Manufacturer: Edmund Bühler GmbH

The Edmund Bühler Multi-Flask Shaker VKS 75A is a high-performance heavy-duty orbital shaker designed for large-capacity applications in demanding laboratory environments. Suitable for floor installation only, it features a spacious 760 x 760 mm base (platform not included) and delivers precise, uniform orbital motion at speeds ranging from 40 to 200 rpm. Ideal for mixing, culturing, and aeration in microbiology, molecular biology, and biotechnology labs.

Key Features:

  • Brand: Edmund Bühler
  • Model: VKS 75A
  • Motion Type: Orbital
  • Speed Range: 40 – 200 rpm
  • Platform Dimensions: 760 x 760 mm (shaking plate not included)
  • Control Interface: Touch display with digital speed and time programming
  • Application: Designed for high-volume flask shaking and intensive cultivation
  • Construction: Rugged and reliable build for continuous operation with heavy loads

Scope of Supply:

  • Basic device without shaking plate
  • Rack system not included

The Edmund Bühler VKS 75A delivers consistent performance for high-volume shaking needs, offering powerful operation and robust construction to support continuous workflows in large-scale laboratory processes.

This product is sold out
Products specifications
Attribute nameAttribute value
Depth835 mm
Depth moving table600 mm
Dimensions (WxDxH)1,050 x 835 x 250 mm
DisplayDigital
Power supply <br>frequency50/60 Hz
Height250 mm
IP codeIP 21
Max. loading capacity75 kg
Max. permitted <br>ambient temp.50 &deg;C
Max. relative <br>humidity rate85 %
Max. speed200 1/min
Max. voltage240 V
Min. permitted <br>ambient temperature5 &deg;C
Min. speed30 1/min
Min. voltage100 V
Moving table (WxD)760 x 600 mm
Permitted ambient <br>temperature5 ... 50 °C
Plug typeEU
Power supply100 ... 240 V, 50/60 Hz
Shaking stroke26 mm
Speed30 ... 200 1/min
TypeVKS 75 A control
Type of movementOrbital
UNSPSC41103811
Weight110 kg
Width1050 mm
Width moving table760 mm
With timerYes
Manufacturer Article Number6111 000
