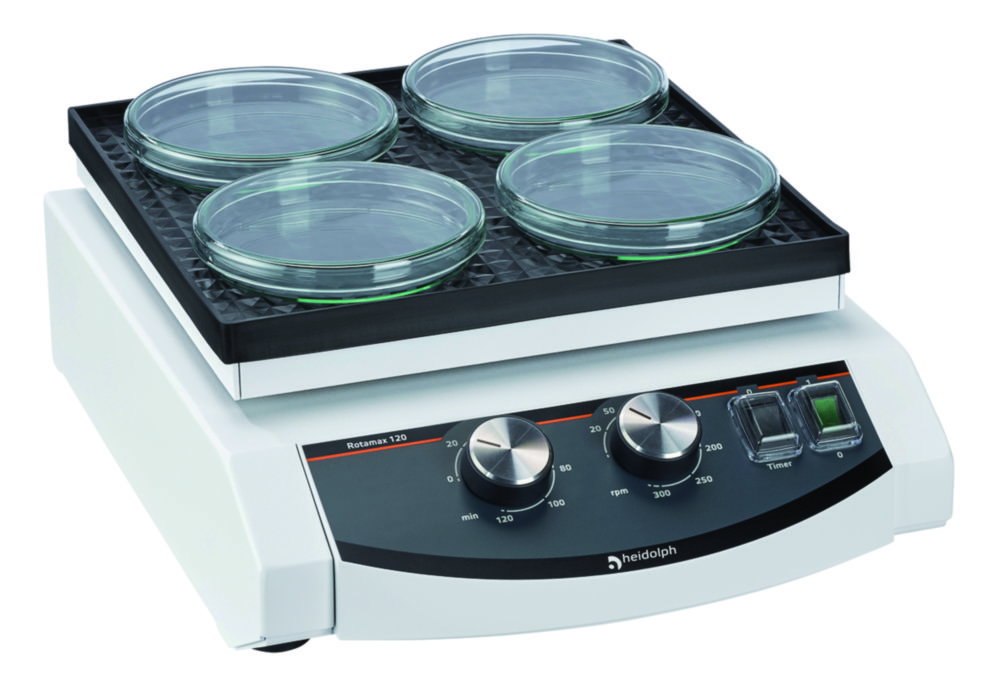

Heidolph Shaker ROTAMAX 120-UK, Compact Orbital Shaker, 220 × 220 mm Platform with Rubber Mat

Shaker ROTAMAX 120-UK 220 x 220 mm useable space with rubber mat -Standard-
Manufacturer: Heidolph Scientific
SKU: 9.839 799
Delivery date: 14 Business Days
€1126.94 incl tax
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Heidolph Shaker ROTAMAX 120-UK, Compact Orbital Shaker, 220 × 220 mm Platform with Rubber Mat is designed for efficient and space-saving mixing applications in modern laboratories. Ideal for culture plates and small vessels, this compact unit ensures uniform agitation for up to 16 Erlenmeyer flasks when equipped with optional attachments. Its stable design and safety features make it perfect for continuous operation in biological, chemical, or analytical settings.

Key Features:

  • Brand: Heidolph
  • Platform Size: 220 × 220 mm usable surface with rubber mat for secure placement
  • Speed Control: Analog control for continuously adjustable speed
  • Timer: Analog process timer from 1 to 120 minutes with audible alarm
  • Safety: Overtemperature sensor automatically shuts off the unit to prevent heat damage
  • Motor Design: Insulated drive system prevents sample heating during operation
  • Stability: Low center of gravity ensures smooth operation even at high speeds
  • Application: Suitable for culture plates and general laboratory mixing tasks

Note: Attachments are not included – please order separately.

The Heidolph ROTAMAX 120-UK offers compact performance, dependable operation, and exceptional versatility, making it an excellent choice for laboratories seeking reliable orbital mixing in limited spaces.

Products specifications
Attribute nameAttribute value
Depth310 mm
Depth moving table220 mm
Dimensions (WxDxH)245 x 310 x 125 mm
DisplayAnalogue
Power supply <br>frequency50/60 Hz
Height125 mm
IP codeIP 30
Max. loading capacity2 kg
Max. permitted <br>ambient temp.31 &deg;C
Max. relative <br>humidity rate80 %
Max. speed300 1/min
Max. voltage230 V
Min. permitted <br>ambient temperature5 &deg;C
Min. speed20 1/min
Moving table (WxD)220 x 220 mm
Permitted ambient <br>temperature5 ... 31 °C
Plug typeUK
Power supply230 V, 50/60 Hz
Rated capacity33 W
Shaking stroke20 mm
Speed20 ... 300 1/min
TypeRotamax 120
Type of movementRotating
UNSPSC41103811
Weight5.5 kg
Width245 mm
Width moving table220 mm
With timerYes
