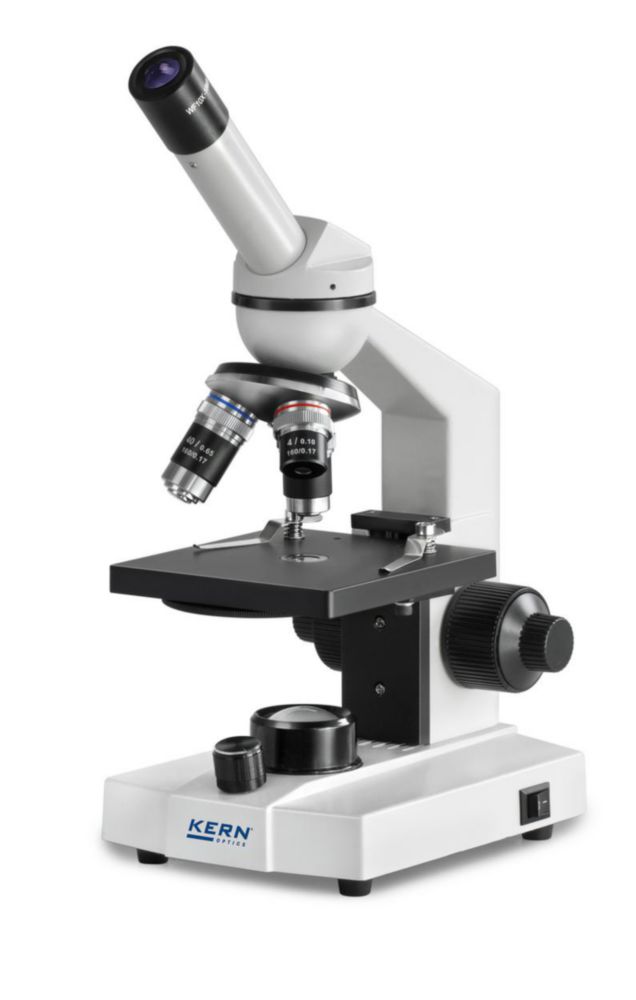

Kern Monocular Transmitted Light Microscope (Achromat 4/10/40, WF10x18, 0.5W LED, Rechargeable)
Transmitted light microscope (school) Monocular achromat 4/10/40. WF10x18. 0.5W LED, recharged
The Kern Monocular Transmitted Light Microscope is an ideal educational tool designed for primary and secondary school students, as well as hobbyists. Featuring achromatic objectives (4×, 10×, 40×) and a widefield eyepiece (WF10x18), this microscope offers clear and precise imaging for various biological specimens.
Key Features:
- Brand: Kern
- Optical System: Finite (DIN standard)
- Eyepiece: WF10x18 widefield
- Objectives: Achromat 4×, 10×, 40× (60× and 100× optionally as accessories)
- Illumination: 0.5 W LED, continuously dimmable and rechargeable
- Tube: 360° rotatable
- Diopter Adjustment: Both sides for binocular models
- Focusing Mechanism: Coaxial pre- and fine focusing
- Condenser: Simple condenser N.A. 0.65 or ABBE 1.25 N.A. condenser focused with aperture diaphragm
- Battery Operation: Possible (compatible with OBS 101-106 batteries)
- Dimensions (W×D×H): 195×147×325 mm
- Weight: Approximately 2.5 kg
Scope of Supply:
- Light microscope
- Dust cover
- Manual instructions
- Mains adapter
This microscope is perfect for observing translucent, thin, high-contrast specimens such as plant tissues and stained cells. Its robust design and user-friendly features make it suitable for classroom settings and personal use.
