Application:Extremely rapid and gentle size reduction of soft to medium-hard and fibrous materials. Ideal for grinding, e.g., chemicals, foods and feeds, washing powder, plastics, fertilizers, pharmaceutical raw materials and finished products. Also suitable for cryogenic grinding.
Features:- gentle on the material thanks to 2-step rotor/screen system
- wide speed range, adjustable from 6000 to 18000 min-1
- patented cassette system for maximum sample recovery and easy cleaning
- defined final fineness due to ring sieves with aperture sizes from 0.08 to 10 mm
- comfortable safety housing with automatic cover closure
- motor compartment and electronics protected against dust and material penetration
- wide range of accessories with different rotors, ring sieves and cassettes
Specifications:- Feed size: up to 10mm
- Final fineness: down to 40µm
- Batch: up to 300/4500ml (with cyclone)
- Size (W x D x H): 410 x 365 x 515 mm
- Weight: approx. 38 kg
- Mains connection: 230 V, 50/60 Hz

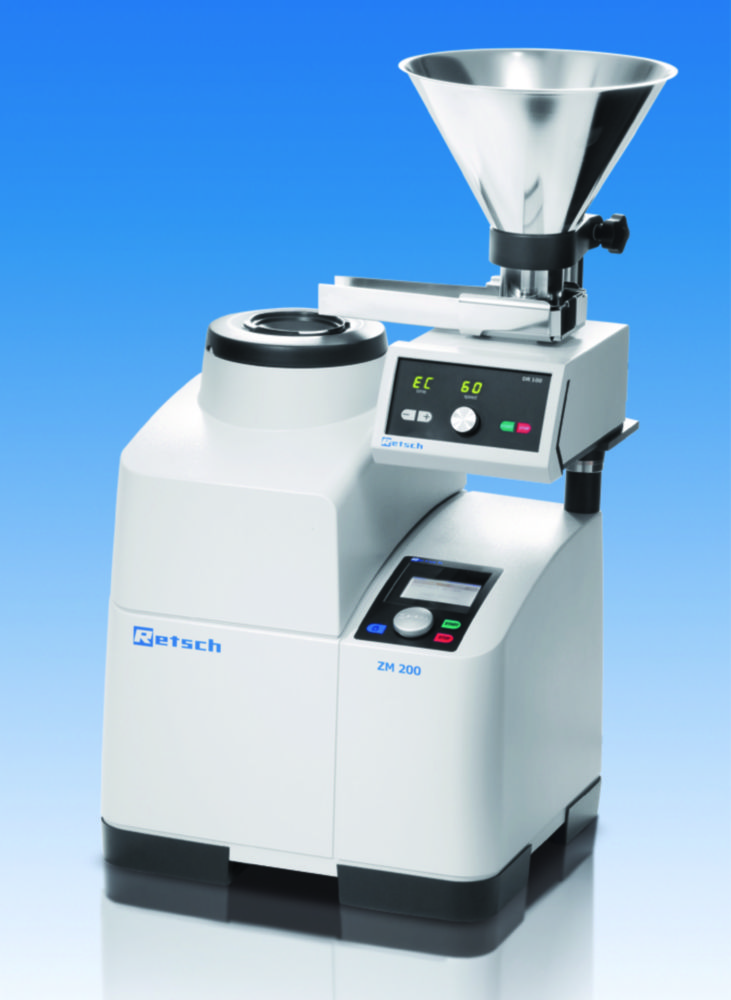

Scope of supply: ZM 200, cassette 900 ml
Rotors and ring sieves have to be ordered separately.
Further rotors and ring sieves on request (e.g. for grinding without heavy metal contamination).
