Vacuum Controller CVC 3000 detect
Manufacturer: VACUUBRAND

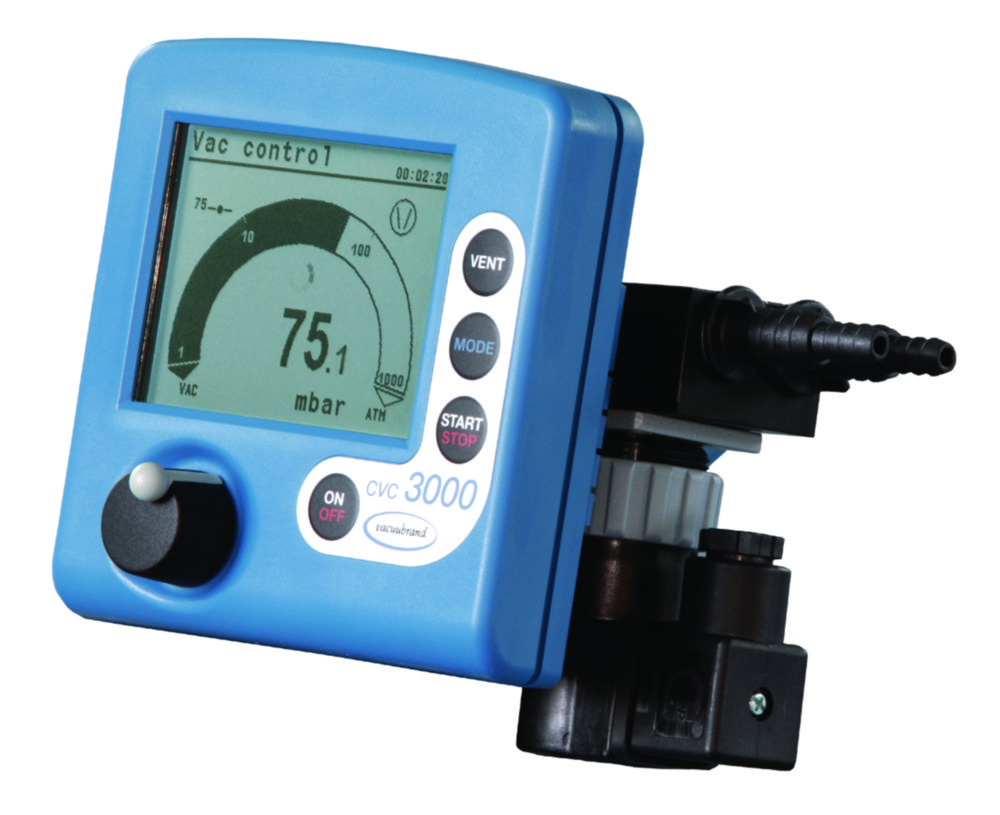

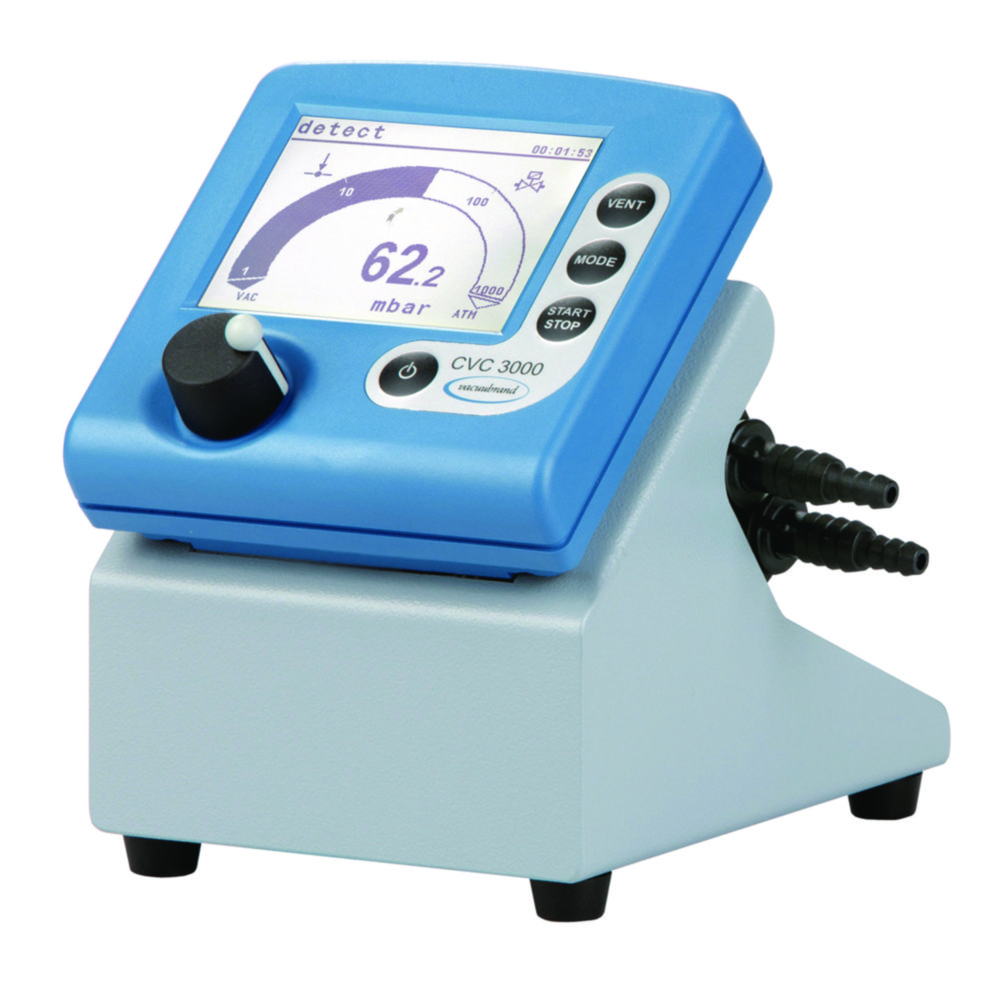

The CVC 3000 detect compact vacuum controller complete with integral vacuum valve and sensor is ready to use either as a bench top or stand mounted unit. The CVC 3000 detect is a compact two-point vacuum regulator, with integrated ceramic vacuum sensor and ventilation valve. The "detect" function provides the ability to find the boiling pressure automatically and thus greatly facilitates the work of solvent evaporation. With integrated non-return valve and chemistry vacuum valve, it forms a highly compact and easy-to-install unit for vacuum regulation. Used in conjunction with existing vacuum pumps or networks, process efficiency is significantly increased through the "detect" electronic vacuum control, the solvent recovery is increased and the environment better protected. The programmable CVC 3000 detect is available for both bench top and stand mounting operation.
Supplied with: Vacuum Controller CVC 3000 detect with vacuum valve, ventilation valve, back-pressure valve, power supply and bench top holder or stand mounting.
This product is sold out
Products specifications
Attribute nameAttribute value
Control interface:Digital VACUU·BUS<sup>®</sup>
Vacuum control range:1080 to 0.1mbar (810 to 0.1 torr)
Accuracy:< ± 1mbar/hPa/torr / ± 1 digit (after adjustment, constant temperature)
Venting valve, connection:Hose nozzle DN 6/10mm<br/>Integrated, hose nozzle DN 4-5mm
Temperature coefficient:< ± 0.07mbar/K (< ± 0.05 torr/K)
Power supply:100 - 230V, 50/60Hz<br/>CEE/CH/UK/US/AUS/CN
