Micro-distillation system, complete

Micro-distillation system, complete
Manufacturer: Rettberg

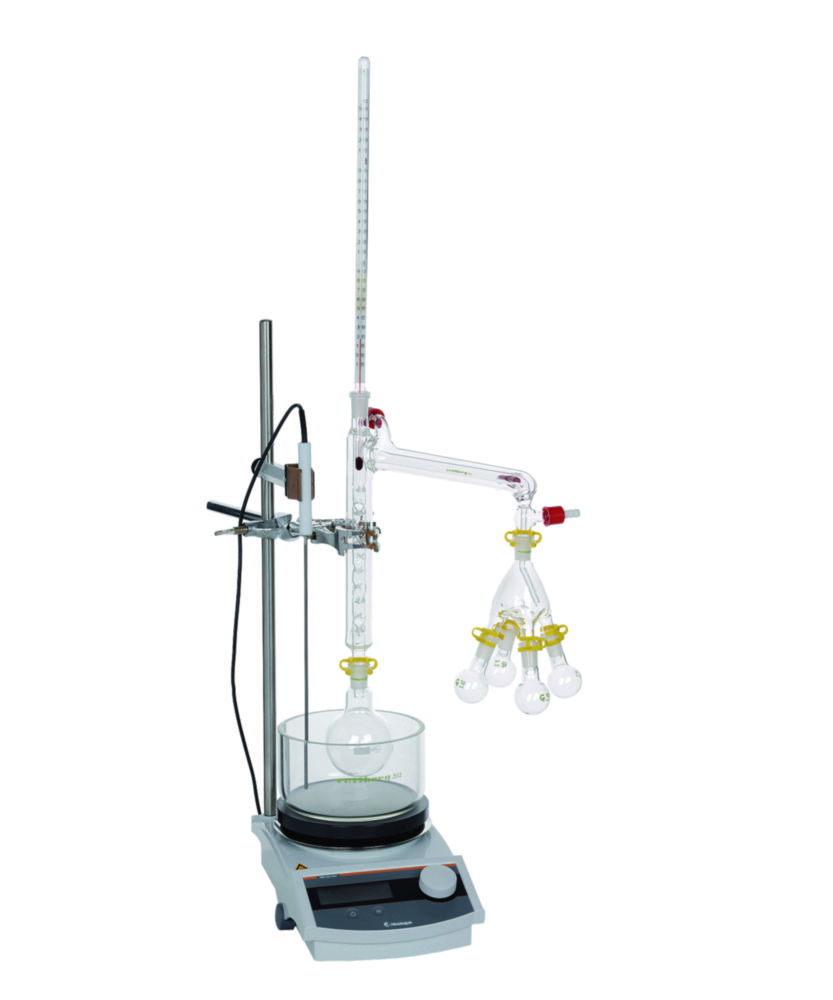

Complete Micro-distillation unit consisting of a Vigreux column with vacuum jacket (effective length 150 mm) and attached Liebig condenser (jacket length approx. 160 mm) and vacuum receiver, 2 x NS 14.5/23 cone and 1 x NS 14.5/23 socket joint connections, cooling connections with screw-off plastic hose connections Ø 8,6 mm (PP), 100 ml evaporating flask, condensate distributor with 4 x 10 ml receiving flasks, 0 to 250 °C thermometer, bath vessel, thick-walled, plane-ground bottom ( capacity approx. 600 ml), borosilicate glass 3.3, stand and mounting materials, magnetic stirrer with heater, Pt1000 sensor.
This product is sold out
Products specifications
Attribute nameAttribute value
Length condenser160 mm
Type of constructionAcc. to Vigreux
Volume vessel100 ml
