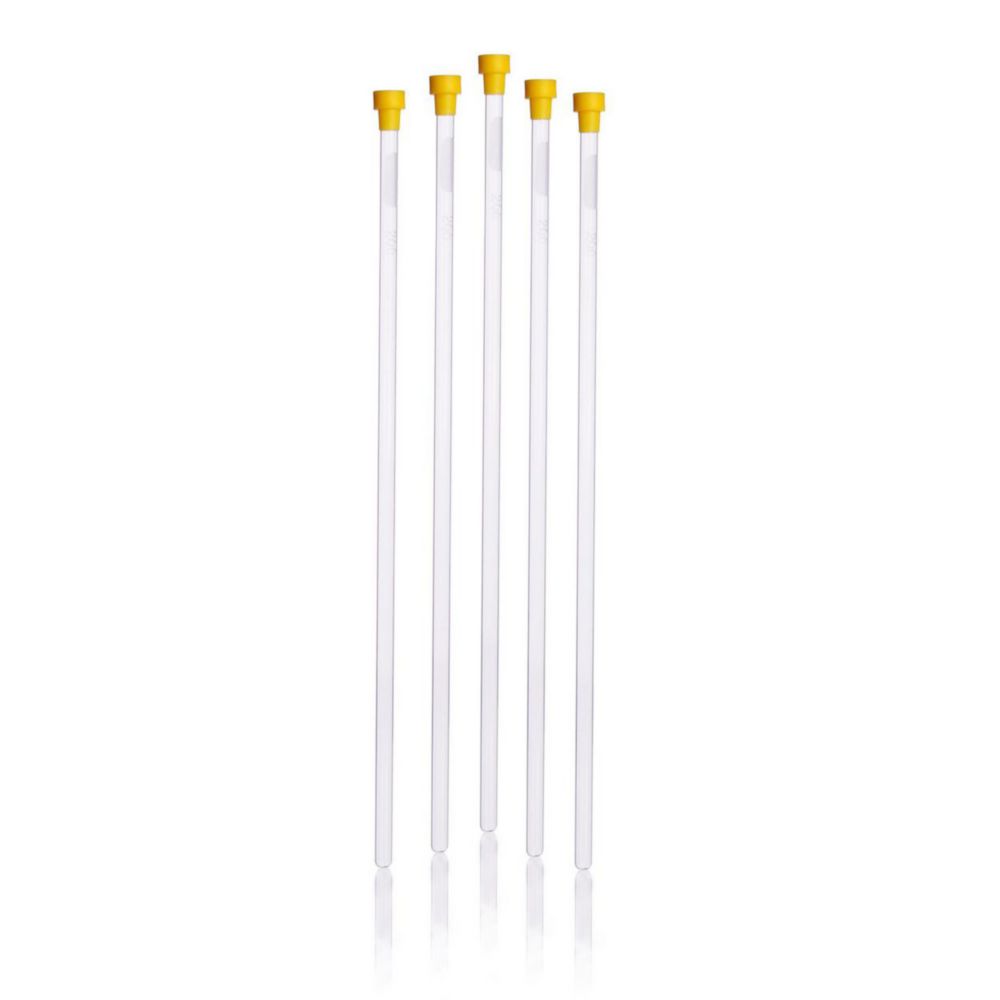

NMR tube 5mm, 600-700MHz 7" pack of 5

Our KIMAX^®-HQ NMR tubes are our highest quality NMR tubes and are 100% gauged for wall thickness, concentricity and camber specifications.

High-Quality NMR tubes
Attached polyethylene caps
Sandblasted marking spot
Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements

This product is sold out

Products specifications

Attribute name	Attribute value
Camber	6 µm
Concentricity	13 µm
Ext. Ø	4,9700 mm ± 0.013, 4,9700 mm
Frequency	600 ... 700 MHz
Int. Ø	4.2000 mm ± 0.013, 4.2000 mm
Length	178 mm
Material	Boro 3.3
Max. frequency	700 MHz
Min. frequency	600 MHz
Tolerance ext. Ø	0.013 mm
Tolerance int. Ø	0.013 mm
Wall thickness	0,375 mm
Manufacturer Article Number	897241-0000
