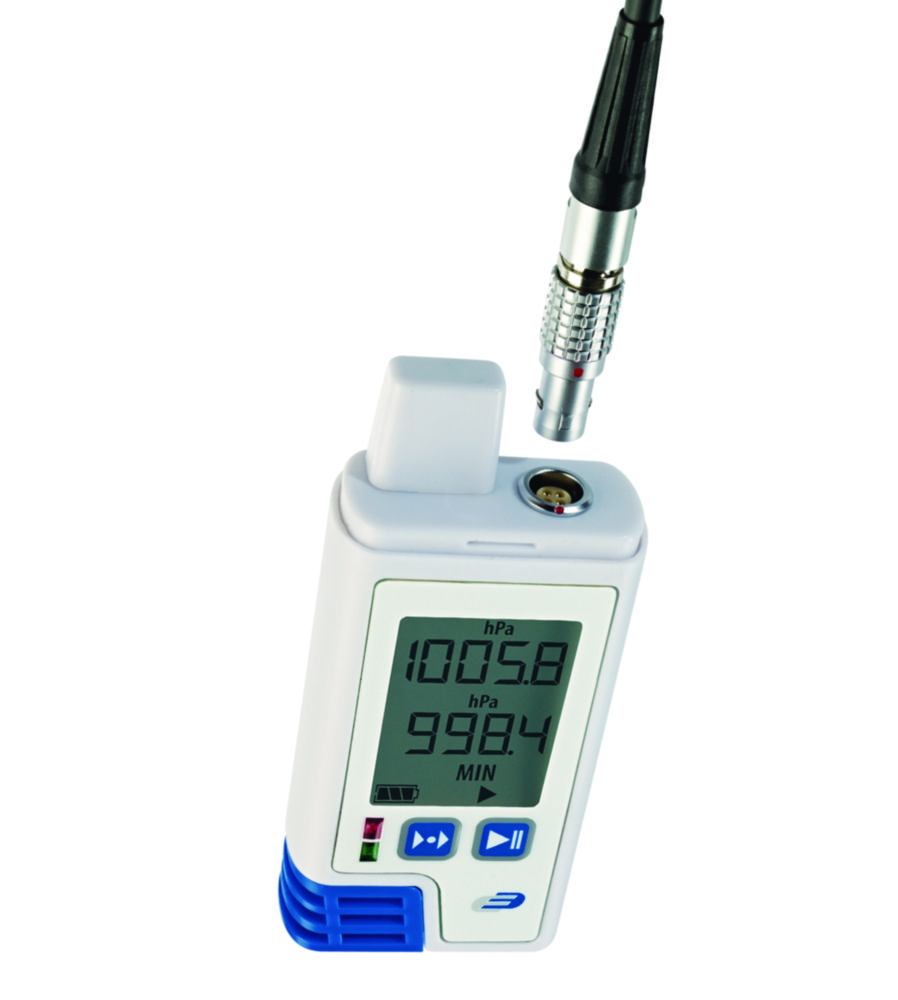

PDF data logger LOG220 E with display for temperature/humidity/pressure internal, 1x input for external sensors

PDF data logger LOG220 E with display for temperature/humidity/pressure internal, 1x input for external sensors
Manufacturer: Dostmann Electronic
Data logger for temperature, humidity and pressure recording with an external connection for a CO2 sensor or humidity, pressure and temperature sensor.
  • Freely adjustable recording interval from 10 seconds to 24 hours
  • Min- and Max-values can be reset in the display
  • Time marking function ("Time Marker") during data recording
  • With movement sensor for shock recording
  • Memory for approx. 60000 measurements
  • Automatic output as PDF file, device can also be used without software
  • No driver installation needed
  • Status and alarm LEDs, with buzzer
  • Display can be switched off
  • Battery life > 4 years at > 15 min measuring interval
  • USB interface for data transfer
  • Software available for download on the manufacturer's website (free of charge)

Temperature, pressure humidity and CO2 sensors are available separately.

Scope of supply: Data logger, wall mount, battery, USB cover, screws and dowels
This product is sold out
Products specifications
Attribute nameAttribute value
TypeLOG220E
Height<br><br>mm91.5
Depth<br><br>mm20
Width<br><br>mm42
Weight kg0.07
Type of auxiliary energy1/2 AA 3,6 V
Range start<br>temperature<br><br>&deg;C40
Measuring range<br>temperature<br><br>&deg;C70
Accuracy<br>temperature<br><br>± &deg;C0.5
Measuring range<br>end humidity<br><br>% r.F.100
Accuracy<br>humidity<br><br>± % r.F.3
Storage<br>readings60000
Resolution<br>temperature<br><br>&deg;C0.1
Resolution<br>humidity<br><br>% r.F.0.1
Manufacturer Article Number5005-0222
