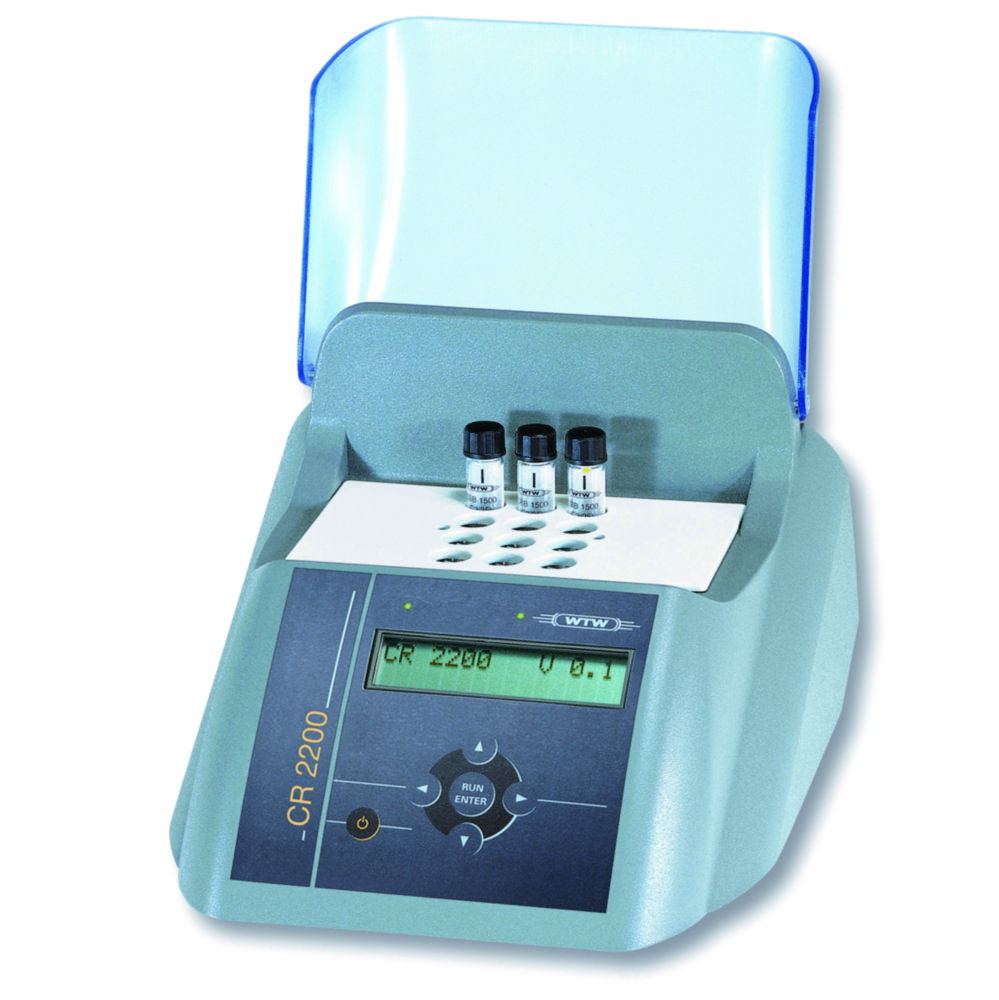

Thermal reactor CR 2200 for 12 reaction tubes

Thermal reactor CR 2200 for 12 reaction tubes
Manufacturer: Xylem WTW
SKU: 9.920 806
Delivery date: 14 Business Days
€987.00 incl tax
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Routine device for waste water analysis. Thermoreactor with preset programmes for the digestion of standard parameters in reaction cuvettes. The CR2200 allows standard-compliant digestion with programmes for the standard parameters COD, total nitrogen, total phosphorus, TOC and heavy metals in galvanisation.

  • 1 thermoblock with 12 holes for reaction cells with an outer diameter of 16 mm

  • 8 stored programmes for all important digestions: 148 °C for 120 min; 148 °C for 20 min; 120 °C for 30 min; 120 °C for 60 min; 120 °C for 120 min; 150 °C for 120 min; 100 °C for 60 min, 100 °C for 30 min

  • Automatic temperature switch-off at the end of the set programme

  • Power supply 115/230 VAC, 50/60 Hz
Products specifications
Attribute nameAttribute value
Control accuracy <br>heating temperature±1 &deg;C
Depth312 mm
Digestion time20, 30, 60, 120 min
Dimensions <br>(WxDxH)255 x 312 x 185 mm
Height185 mm
IP codeIP 20
No. of <br>borings12
Temperature <br>stability±0,5 K
Temperature <br>setting100, 120, 148, 150 °C
TypeCR 2200
Type of <br>auxiliary energyMains connection
Weight3 kg
Width255 mm
