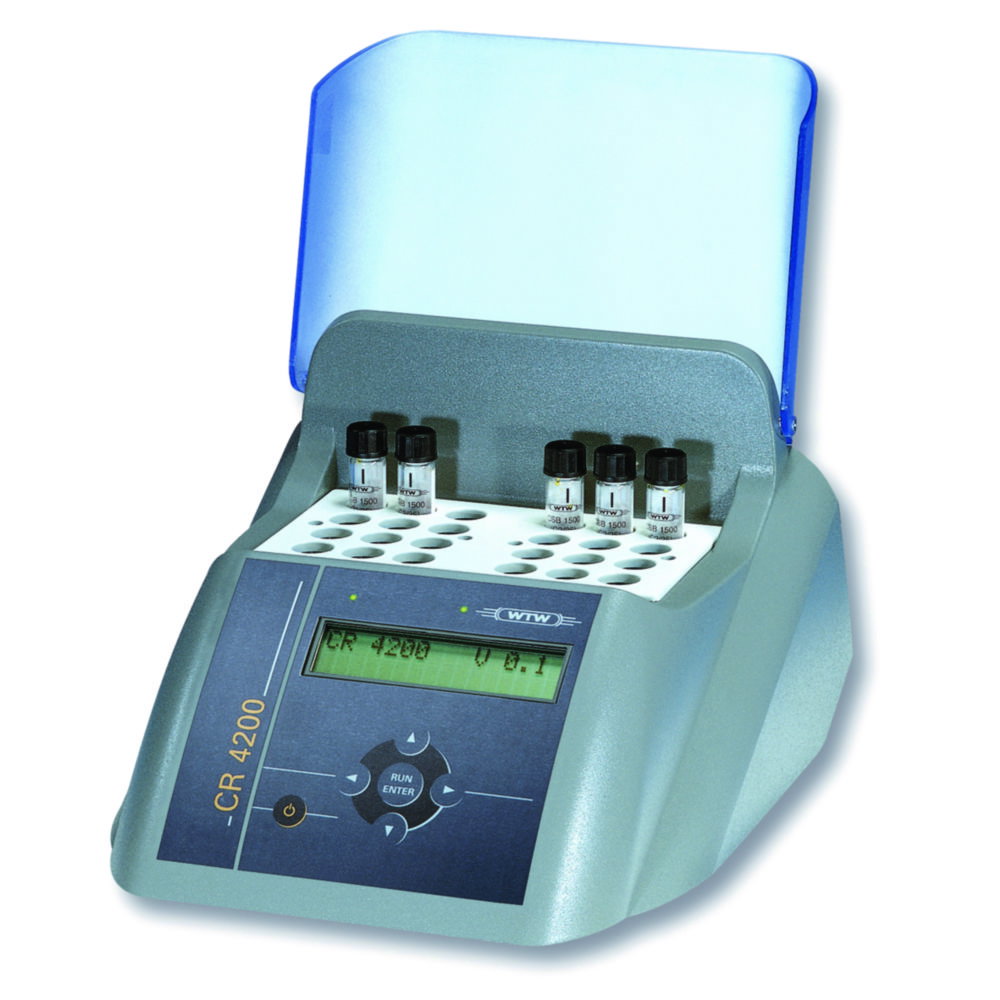

Thermal SOD reactor CR 4200 for 2x12mm reaction tubes

Thermal SOD reactor CR 4200 for 2x12mm reaction tubes
Manufacturer: Xylem WTW
SKU: 9.920 808
Delivery date: 14 Business Days
€1842.40 incl tax
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Thermoreactor with pre-programmed and user-defined programmes for the digestion of standard parameters in reaction cuvettes. The CR4200 allows standard-compliant digestions with programmes for the standard parameters COD, total nitrogen, total phosphorus, TOC and heavy metals in galvanisation. In addition, 8 separate programmes can be created for special digestions at temperatures between room temperature (25 °C) and 170 °C. Independent thermoblocks allow 2 different programmes to be run simultaneously.

  • 2 independent thermoblocks with 12 holes each for reaction cells with an outer diameter of 16 mm

  • 8 stored programmes for all important digestions: 148 °C for 120 min; 148 °C for 20 min; 120 °C for 30 min; 120 °C for 60 min; 120 °C for 120 min; 150 °C for 120 min; 100 °C for 60 min, 100 °C for 30 min

  • Automatic temperature switch-off at the end of the set programme

  • AQA/IQK with optional external temperature sensor for documentation

  • Power supply 115/230 VAC, 50/60 Hz
Products specifications
Attribute nameAttribute value
Control accuracy <br>heating temperature±1 &deg;C
Depth312 mm
Digestion time20, 30, 60, 120 min/0 ... 180 min
Dimensions <br>(WxDxH)255 x 312 x 185 mm
Height185 mm
IP codeIP 20
No. of <br>borings24
Temperature <br>stability±0,5 K
Temperature <br>setting100, 120, 148, 150 °C/25 ... 170 °C
TypeCR 4200
Type of <br>auxiliary energyMains connection
Weight4 kg
Width255 mm
