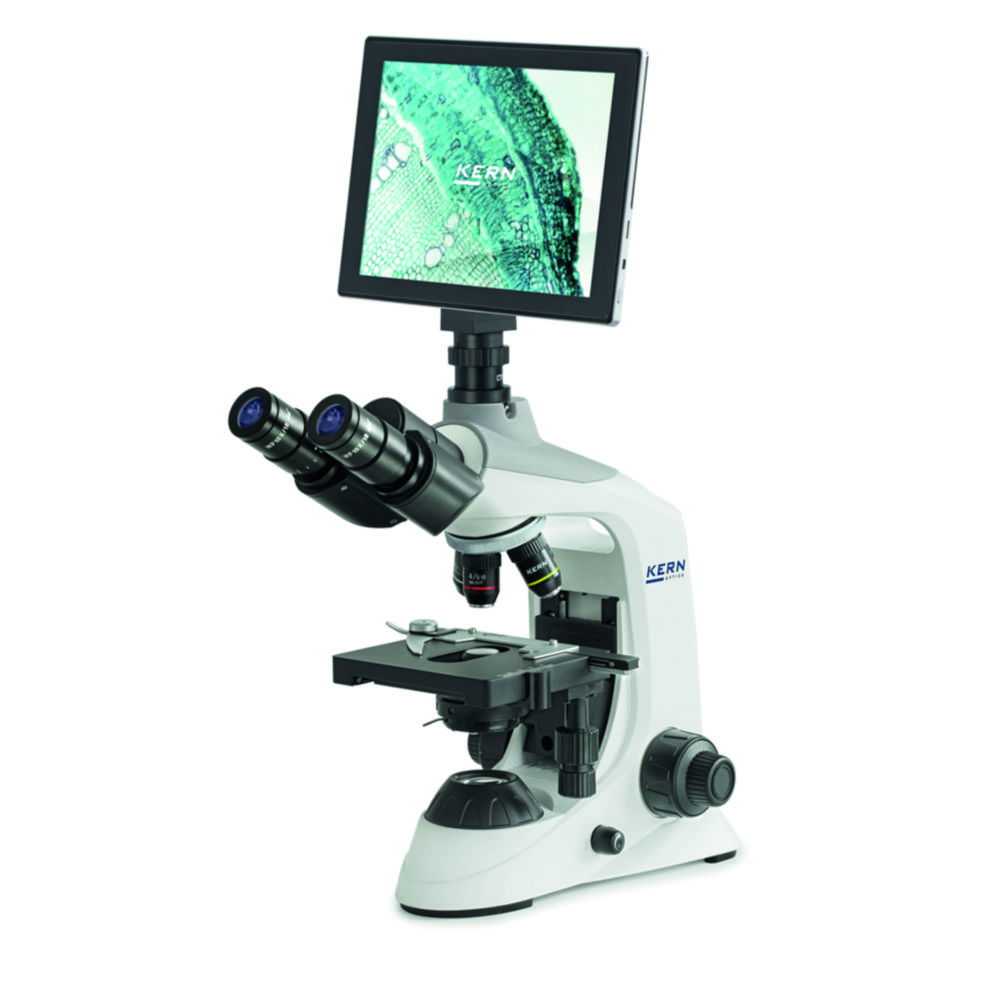

Transmitted light microscope - digital set

Manufacturer: Kern & Sohn

SKU: 4.691 072

€1305.43 incl tax

Qty:

The set is the comprehensive digital solution for school, training and laboratory.

Scope of supply:
Transmitted light microscope, camera, dust cover, eye cups, manual instruction

Products specifications

Attribute name	Attribute value
Condenser	Abbe N.A. 1,25
Depth	180 mm
Depth stage	115 mm
Dimensions (WxDxH)	320 x 180 x 365 mm
Power supply <br>frequency	50 Hz
Height	365 mm
Inclination <br>angle tube	30°
Interfaces	WLAN, USB 2.0, HDMI, SD (15 ... 30 FPS)
Interpupillary <br>distance	48 ... 75 mm
Light type	LED
Magnification <br>eyepieces	HWF 10x/18 mm
Magnification <br>objectives	4x, 10x, 40x, 100x
Max. interpupillary <br>distance	75 mm
Max. voltage	230 V
Min. interpupillary <br>distance	48 mm
Plug type	EU
Power supply	230 V, 50 Hz
Resolution camera	5 MP
Revolving nosepiece	4-fold
Sensor	CMOS 1/2,5"
Stage (WxD)	125 x 115 mm
Tube	Trinocular
Type	OBE 134T241
Type of <br>auxiliary energy	Mains connection
Type of illumination	Transmitted illumination
Weight	5.5 kg
Width	320 mm
Width stage	125 mm
Manufacturer Article Number	OBE 134T241
Dual Use	0
