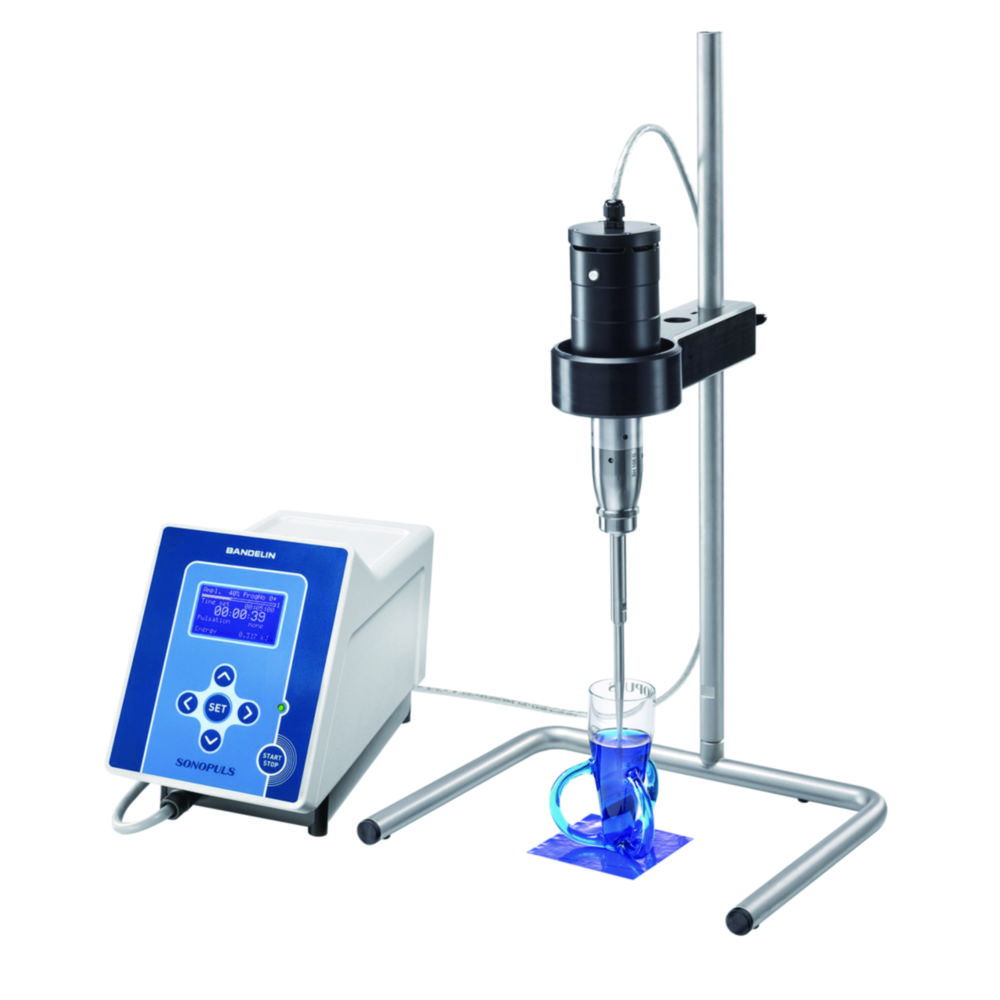

Ultrasonic homogenizer HD 4100 SONOPULS, Set: consisting of: generator GM 4200, ultrasonic converter UW 100,

Ultrasonic homogenizer HD 4100 SONOPULS, Set: consisting of: generator GM 4200, ultrasonic converter UW 100,
Manufacturer: Bandelin
SKU: 9.650 152
Delivery date: 14 Business Days
€3077.91 incl tax
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
For volumes 2 to 200 ml. Ready-to-operate set for volumes from 3 to 50 ml consisting of:
  • HF generator GM 4200
  • Ultrasonic converter UW 100
  • Standard horn SH 100 G
  • Titanium probe TS 103, diam. 3 mm

Further Titanium probes with diam. 2 mm, 4.5 mm, 6 mm, 9 mm and 13 mm available on request.
Products specifications
Attribute nameAttribute value
Amplitude10 ... 100 %
Depth335 mm
Power supply <br>frequency50/60 Hz
Height230 mm
IP codeIP 30
Max. amplitude100 %
Max. voltage230 V
Max. working volume50 ml
Min. amplitude10 %
Min. working volume3 ml
Plug typeEU
Power setting range30...150 W
Power supply230 V, 50/60 Hz
Rated capacity100 W
TypeSONOPULS HD 4100
Type of <br>auxiliary energyMains connection
Ultrasonic frequency20 kHz
UNSPSC41101504
Width150 mm
Working volume3 ... 50 ml
