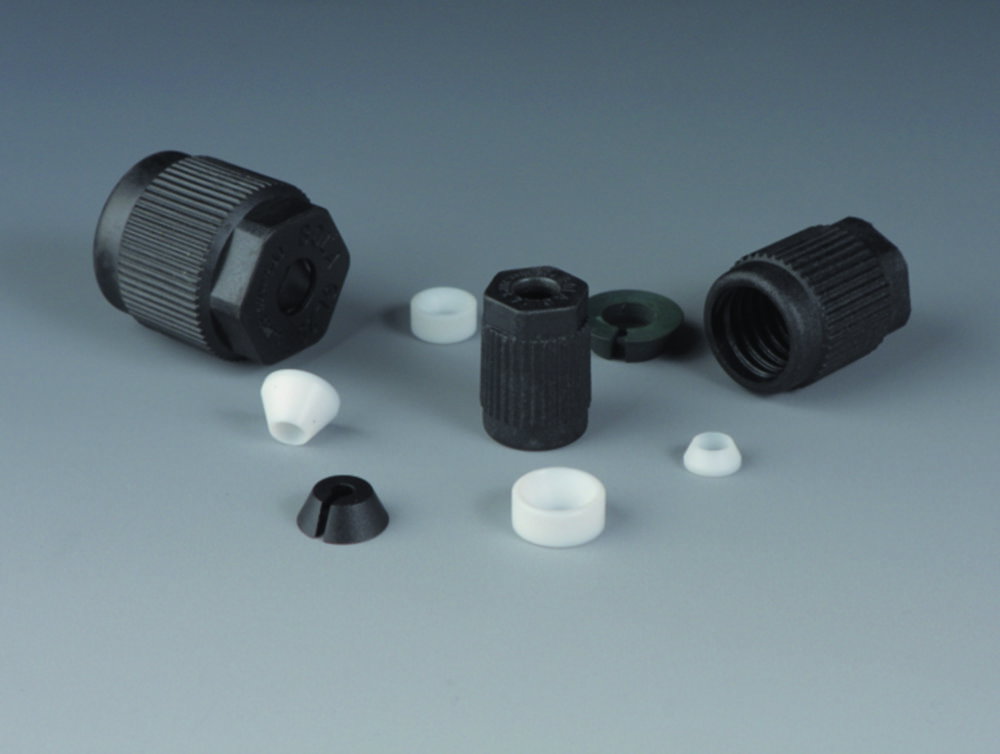

The Bohlender HT Laboratory Screw Joint GL 45 Ø 8.0 mm, PPS is designed for connecting equipment and fittings with GL threads to hard-walled tubing or tubes made of glass, plastic, or metal. It is ideal for fixing probes, thermometers, dip tubes, or cables in reaction vessels. The black screw cap is made of PPS, with inner parts consisting of a V-ring (PPS), a tapered ring and a sealing ring (both PTFE), and an O-ring (FKM) for tubing diameters under 3 mm (not exposed to the medium).
Key Features:
- Brand: Bohlender
- Material: PPS (Polyphenylene Sulfide)
- Thread Size: GL 45
- For External Tubing Diameter: 8.0 mm
- Temperature Resistance: -50°C to +250°C
- Pressure Stability: Up to 10 bar
- Vacuum Suitable
- Color: Black
This screw joint offers excellent chemical resistance, with the medium being exposed only to PTFE, ensuring durability and reliability in demanding laboratory environments.
