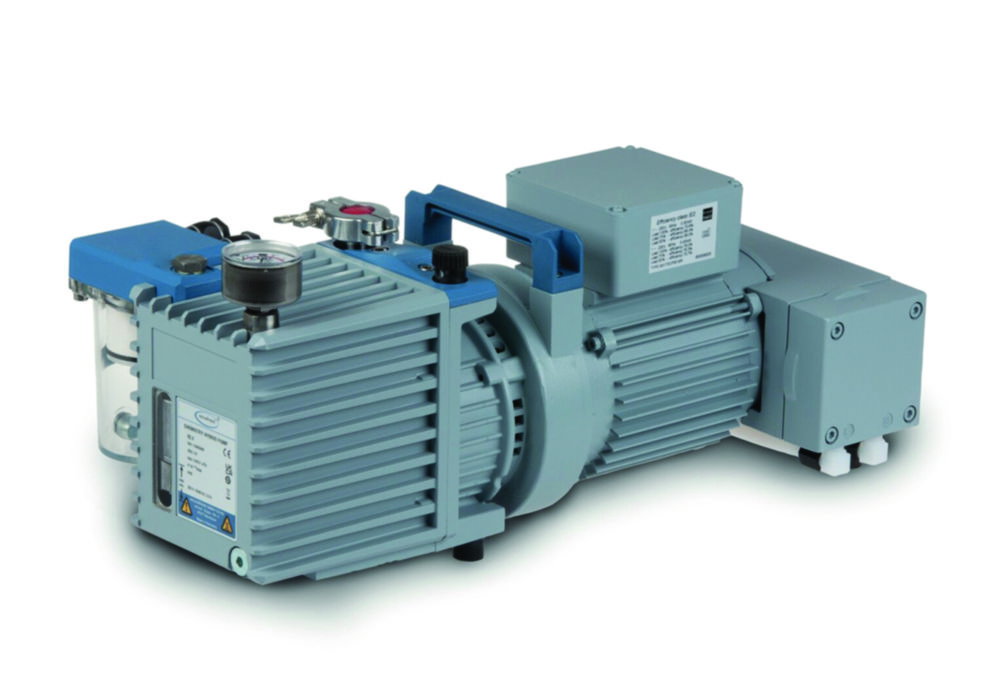

Vacuubrand Chemistry HYBRID Pump RC 6 230 V / 50-60 Hz, CH/CN Mains Cable

Chemistry HYBRID pump RC 6 230 V / 50-60 Hz, CH/CN mains cable
Manufacturer: VACUUBRAND​
SKU: 4.687 930
€4534.03 incl tax
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The Vacuubrand Chemistry HYBRID Pump RC 6 230 V / 50-60 Hz, CH/CN Mains Cable is an advanced vacuum pump designed for high-performance applications in laboratory chemistry. Offering precise control and superior reliability, this pump is ideal for processes that require consistent vacuum levels. With a CH/CN mains cable, it ensures easy integration into laboratory setups with 230 V power supply, supporting efficient and smooth operations in various chemical processes.

Key Features:

  • Brand: Vacuubrand
  • Model: Chemistry HYBRID Pump RC 6
  • Voltage: 230 V / 50-60 Hz
  • Cable: CH/CN mains cable for easy connection
  • Application: Ideal for chemistry and laboratory vacuum applications
  • Performance: Two-stage rotary-vane pump with two-stage chemistry diaphragm for optimized corrosion resistance
  • Vacuum Range: Ultimate vacuum in the 10⁻³ mbar range
  • Maintenance: Low-maintenance design suitable for freeze-drying and other demanding processes

Scope of Supply:

  • Pump
  • Overload circuit breaker and mains cable (2 m)
  • Centering and clamping ring for inlet
  • Particulate filter
  • Operating instructions
  • Oil (bottle of 500 ml)

This Vacuubrand vacuum pump provides a reliable solution for chemistry laboratories requiring precise and stable vacuum performance across various applications.

Products specifications
Attribute nameAttribute value
Connection <br>pressure sideDN 8-10 mm
Connection <br>suction sideKF DN 16
Depth302 mm
Dimensions <br>(WxDxH)526 x 302 x 226 mm
Flow rate5.9 m³/h
Power supply <br>frequency50/60 Hz
Height226 mm
IP codeIP 40
Max. <br>oil filling500 ml
Max. voltage230 V
No. of stages2
Plug typeCH
Power supply230 V, 50/60 Hz
TypeRC 6
Type of <br>auxiliary energyMains connection
Ultimate vacuum0.002 mbar
Ultimate vacuum <br>with gas ballast0.01 mbar
UNSPSC41105109
Weight25 kg
Width526 mm
