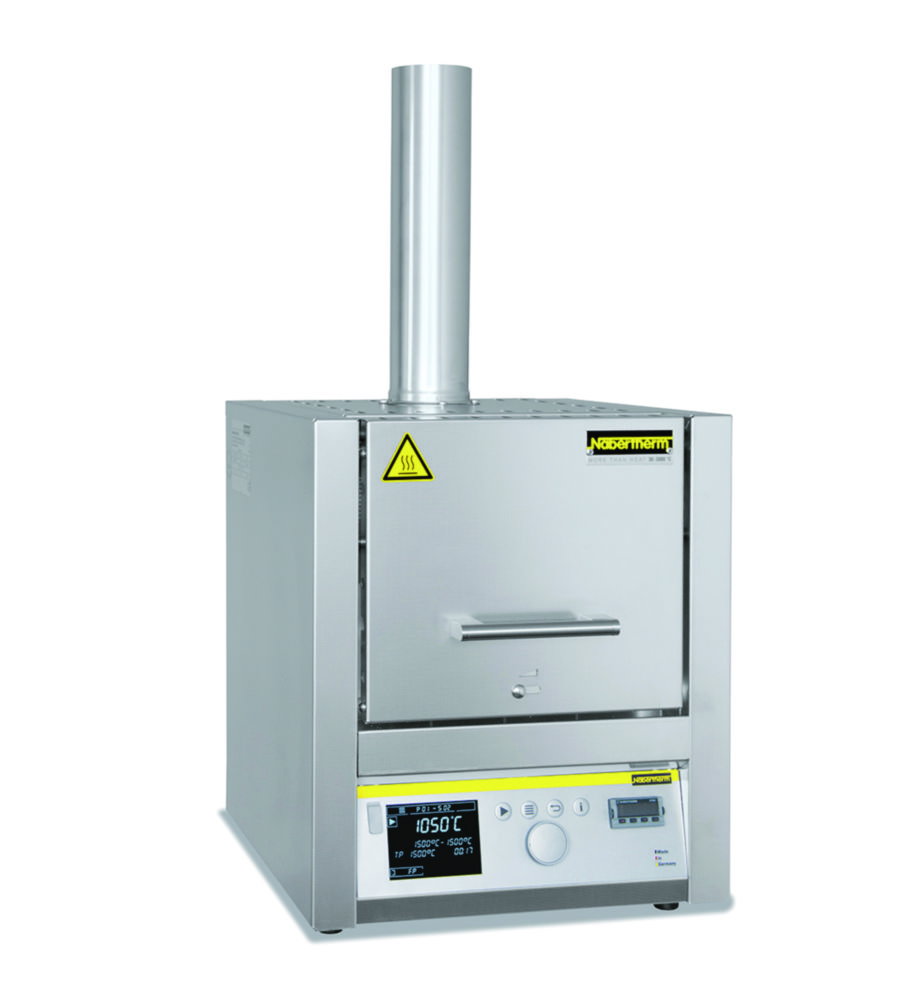

Ashing furnace LV 5/11/B510 with controller B 510 1100°C max.

The models LV 3/11 - LVT 15/11 are especially designed for ashing in the laboratory. A special air intake and exhaust system allows air exchange of more than 6 times per minute. Incoming air is preheated to ensure a good temperature uniformity.

• Tmax 1100°C
• Heating from two sides
• Ceramic heating plates with integral heating element which is safeguarded against fumes and splashing, and easy to replace
• Insulation only made of materials that are classified as not carcinogenic acc. to TRGS 905, class 1 or 2
• Housing made of sheets of textured stainless steel
• Dual shell housing for low external temperatures and stability

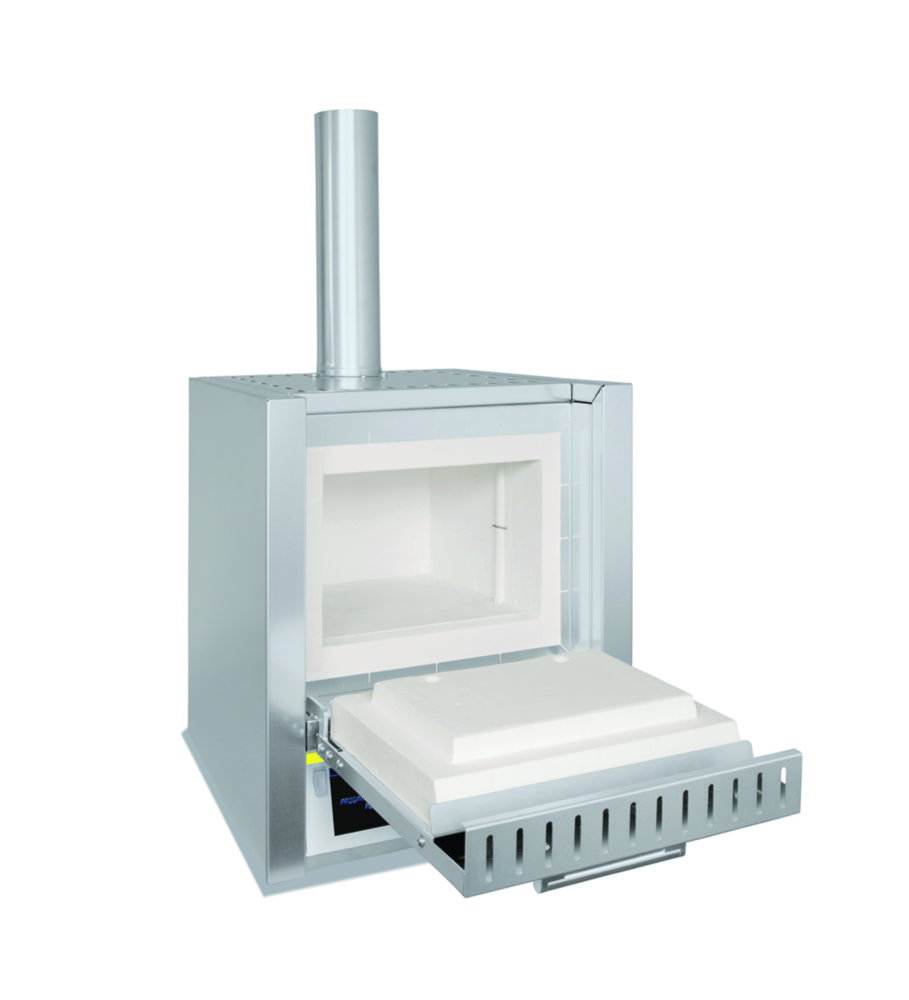

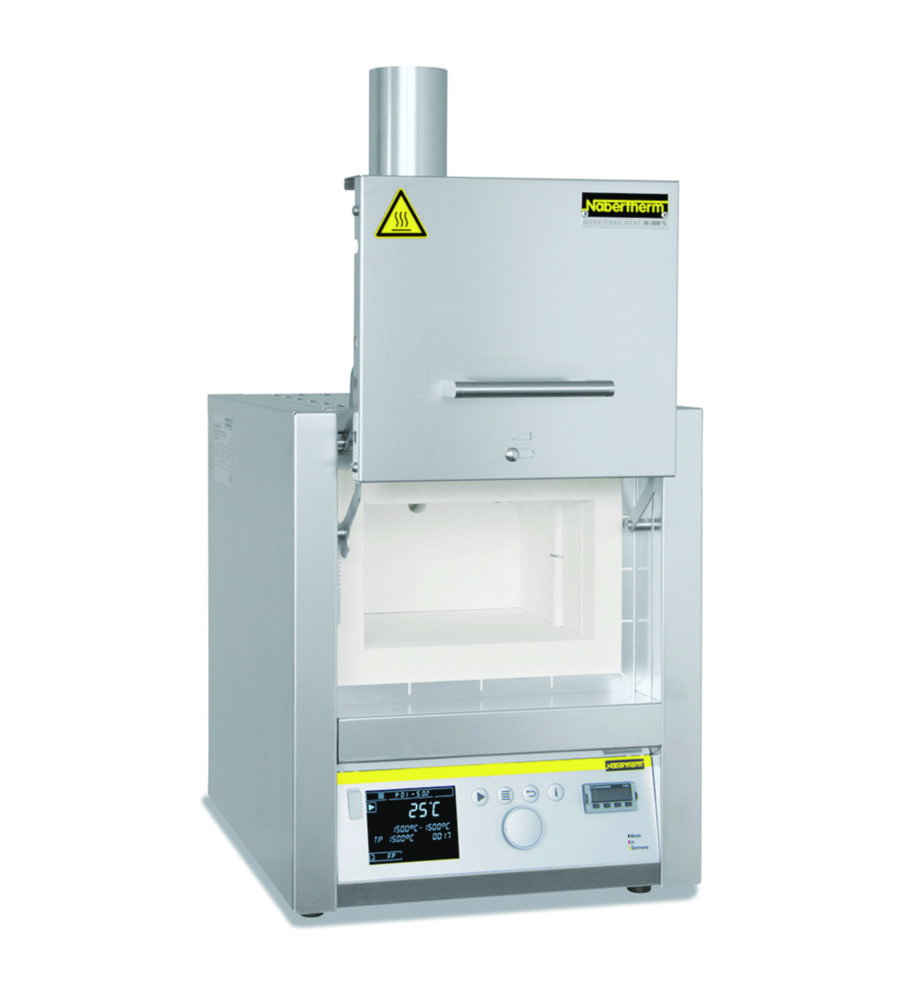

• Optional flap door (LV) which can be used as work platform or lift door (LVT) with hot surface facing away from the operator
• Solid state relays provide for low noise operation
• Air exchange of more than 6 times per minute
• Good temperature uniformity due to preheating of incoming air
• 220-240 V 1/N/PE 50/60 Hz connector as standard

Option:

• Over-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and load
• Observation hole in the oven door
• Process control and documentation via VCD software package for monitoring, documentation and control
