Chemical vacuum system ME 16C NT +EK 100-115 V/50-60 Hz, US plug

Name: Chemical vacuum system ME 16C NT +EK 100-115 V/50-60 Hz, US plug
SKU: 4.701 123
Price: 7957.69 EUR
Availability: InStock

Manufacturer: VACUUBRAND

SKU: 4.701 123

Vendor: Labfriend Pty Ltd

€7957.69 incl tax

Qty:

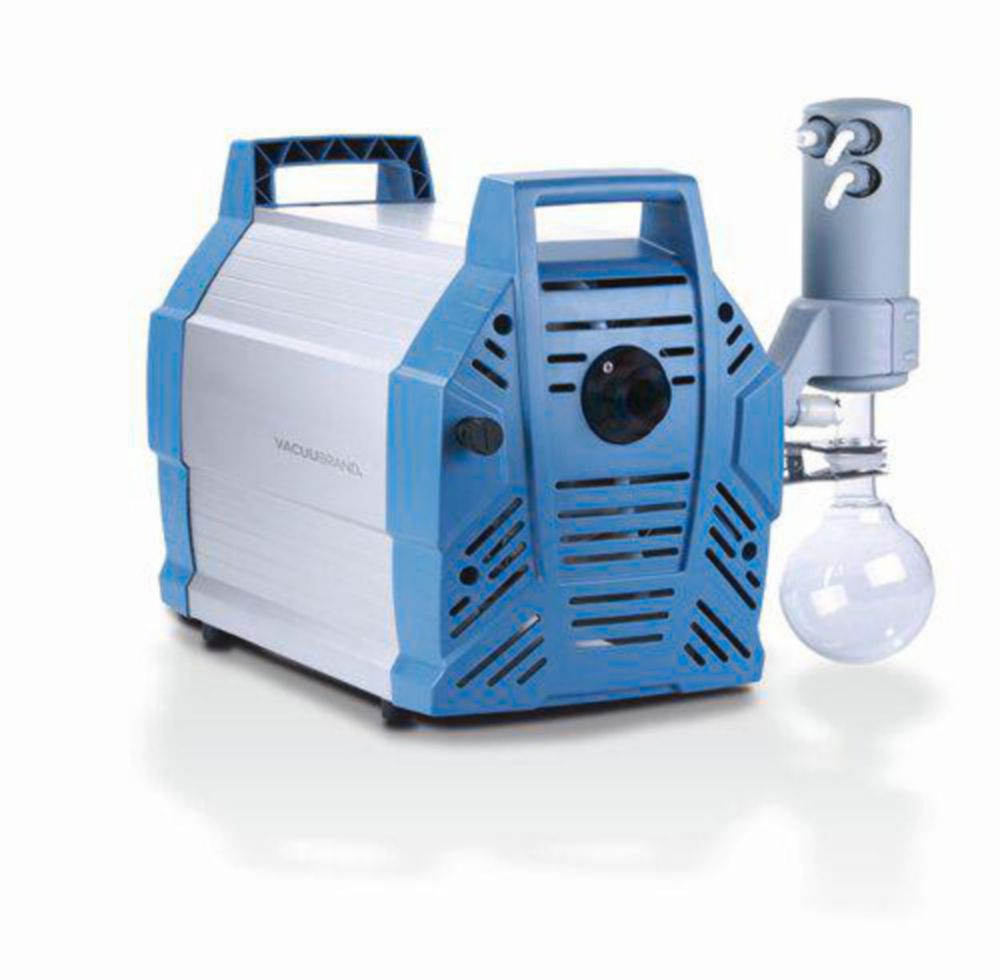

This chemistry vacuum system has a wide range of applications like evacuation, evaporation and pumping of gases and vapors. The waste vapor condenser at the outlet (EK) enables near 100 percent solvent recovery.

Good chemical resistance and vapor tolerance

High performance even at low vacuum

Good vacuum even with gas ballast

Quiet and ultra low vibration

Oilfree

A separator at the inlet (AK) can be mounted later to this system

Products specifications

Attribute name	Attribute value
Connection <br>pressure side	DN 8-10 mm
Connection <br>suction side	KF DN 25
Depth	528 mm
Dimensions <br>(WxDxH)	387 x 528 x 395 mm
Flow rate	16.3 m³/h
Power supply <br>frequency	50/60 Hz
Height	395 mm
IP code	IP 40
Max. permitted <br>ambient temp.	40 °C
Max. voltage	115 V
Min. permitted <br>ambient temperature	10 °C
Min. voltage	100 V
No. of <br>stages	1
Noise level	54 db(A)
Plug type	US
Power supply	100 ... 115 V, 50/60 Hz
Type	ME 16C NT+EK
Type of <br>auxiliary energy	Mains connection
Ultimate vacuum	70 mbar
Ultimate vacuum <br>with gas ballast	100 mbar
UNSPSC	40151502
Weight	28.3 kg
Width	387 mm
