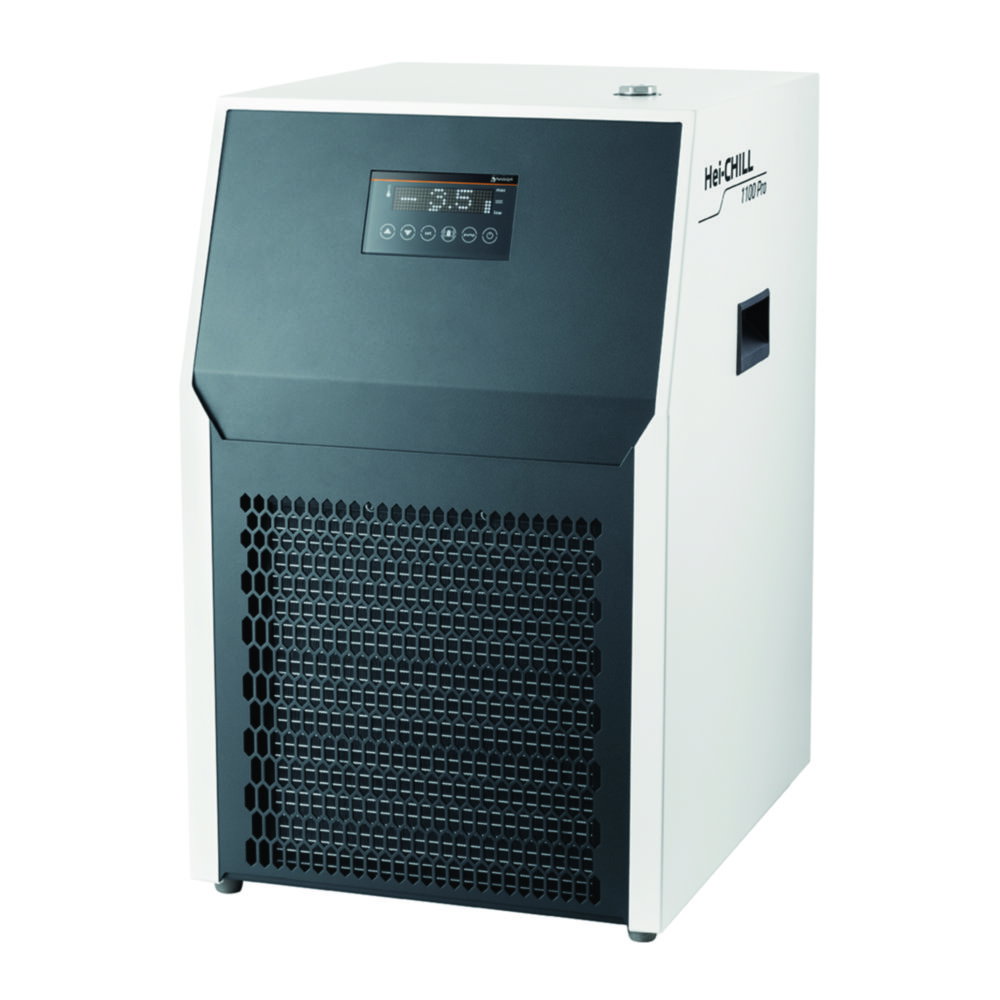

Circulating chiller Hei-CHILL 1100 Pro UK-plug

Circulating chiller Hei-CHILL 1100 Pro UK-plug
Manufacturer: Heidolph
SKU: 4.703 507
€4875.17 incl tax
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
A cooling capacity of up to 1100 watt allows an effective and powerful cooling of every application, even at low temperatures, or the supply of multiple evaporation systems by a recirculation chiller. Maximum performance for achieving the set target values quickly and for keeping high temperature stability even when using high-polar solvents or during continuous evaporation processes, e.g. in combination with the automatic Hei-VOLUME Distimatic Pro module

With natural refrigerant (R-290)
Efficient cooling system with low-energy fans
Touchscreen controller with glass surface and integrated level indicator
Low noise level due to speed-controlled fans
RS-232 interface
Controlled e.g. via Hei-VAP Expert Control, Ultimate Control or via Heidolph laboratory software process solutions

Products specifications

Attribute nameAttribute value
Cooling <br>capacity at 20 &deg;C1100 W
Ext. dim. <br>(WxDxH)380 x 460 x 620 mm
Ext. depth460 mm
Ext. <br>height620 mm
Ext. <br>width380 mm
Power supply <br>frequency50 Hz
IP codeIP 20
Max. delivery <br>pressure2.8 bar
Max. temperature40 &deg;C
Max. voltage230 V
Max. volume bath13.5 l
Min. <br>temperature-10 &deg;C
Min. volume <br>bath8.5 l
Plug typeUK
Power supply230 V, 50 Hz
RefrigerantR290
Temperature <br>stability±0,5 K
Temperature-10 ... 40 °C
TypeHei-Chill 1100 Pro
Type of <br>auxiliary energyMains connection
UNSPSC41103701
Volume bath8.5 ... 13.5 l
Weight41 kg
