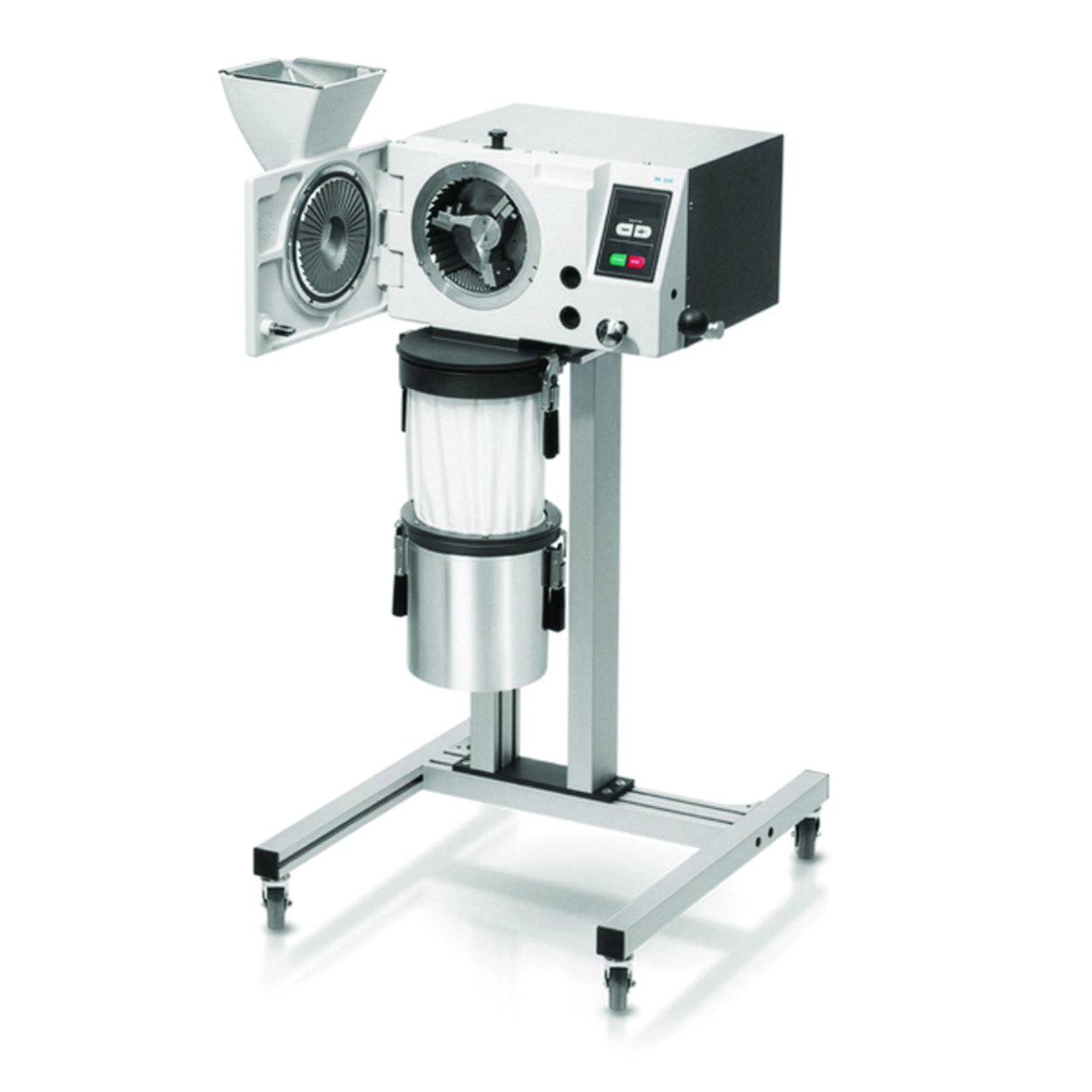

Cross Beater Mill SK 300 grinding assembly, cross beater:, cast iron, baffle plates: steel 1.1740, 200-240 V, 50/60 Hz

The cross beater mill SK 300 is used for batch-wise or continuous preliminary and fine size reduction. This robust mill is suited for laboratories as well as for the rough conditions of a production environment. Thanks to the powerful drive and rotor speed up to 4000 rpm it is often possible to achieve a final fineness <100 microns in one process.

Features:

• High throughput for batch-wise size reduction of large sample volumes


• Defined final fineness due to bottom sieves with aperture sizes from 0.12 to 10 mm


• Rapid cleaning thanks to easily removable cassette, hopper and push fit rotor


• Ring filter and collecting vessel with convenient, dust-tight bayonet catch


• Quick-action door lock safety lock and electric brake

Function principle:
Size reduction in the SK 300 takes place by impact and shearing effects. The air drawn in through the hopper by the cross beater accelerates the discharge of the ground material. The airborne fine fraction is separated off by a downstream filter system.

Scope of supply: Cross Beater Mill with grinding insert, cross beater, baffle plates, filter hose, 5 l collecting vessel

Bottom sieves and base frame, please order separately.
Feeders and bottom sieves in further sizes are available on request.
