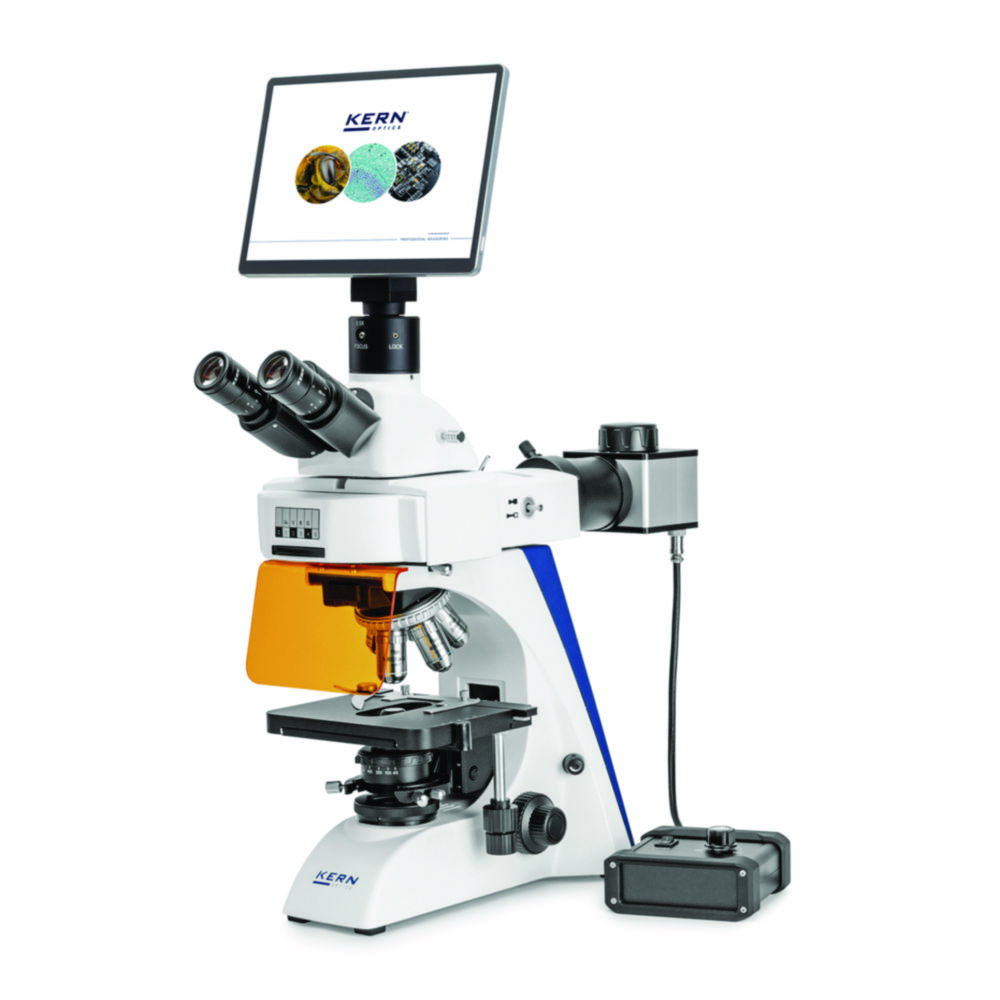

Digital Microscope Set OBN 142T251

Name: Digital Microscope Set OBN 142T251
SKU: 4.719 787
Price: 5008.44 EUR
Availability: InStock

Manufacturer: KERN & SOHN

SKU: 4.719 787

Vendor: Labfriend Pty Ltd

€5008.44 incl tax

Qty:

The sets are a complete digital solution for live investigations, including appropriate C-mount adapter. The microscope tablet camera consists of an Android tablet with a 10.5" HD touch display in combination with an 8 MP 4K camera.

Objectives 4x, 10x, 20x, 40x, 100x

Koehler illumination unit with an adjustable field diaphragm

Centering and height-adjustable 1.25 Abbe condenser with adjustable aperture diaphragm

3W-LED transmitted illumination unit

5 W LED Epi fluorescence incident illumination unit

Filter wheel which has up to 6 fittings is fitted with a B/G/UV/V fluorescence filter

Scope of supply: Fluorescence microscope OBN 142, tablet camera ODC 251, C-mount adapter

Products specifications

Attribute name	Attribute value
Condenser	Abbe 1,25
Depth	235 mm
Depth stage	145 mm
Dimensions <br>(WxDxH)	390 x 235 x 620 mm
Height	620 mm
Inclination <br>angle tube	30 °
Interfaces	Ethernet, Bluetooth, WLAN, USB 2.0, USB 3.0, HDMI
Interpupillary <br>distance	50 ... 75 mm
Light type	LED
Magnification <br>eyepieces	HWF 10x/Ø 20 mm
Magnification <br>objectives	4x, 10x, 20x, 40x, 100x
Max. interpupillary <br>distance	75 mm
Max. voltage	240 V
Min. interpupillary <br>distance	50 mm
Min. voltage	100 V
Plug type	EU
Power supply	100 ... 240 V
Resolution <br>camera	8 MP
Revolving <br>nosepiece	5-fold
Sensor	CMOS 1/1.8"
Stage <br>(WxD)	175 x 145 mm
Tube	Trinocular
Type	OBN 142T251
Type of <br>auxiliary energy	Mains connection
Type of illumination	Incident/transmitted light
Warranty	3 years
Weight	11 kg
Width	390 mm
Width <br>stage	175 mm
