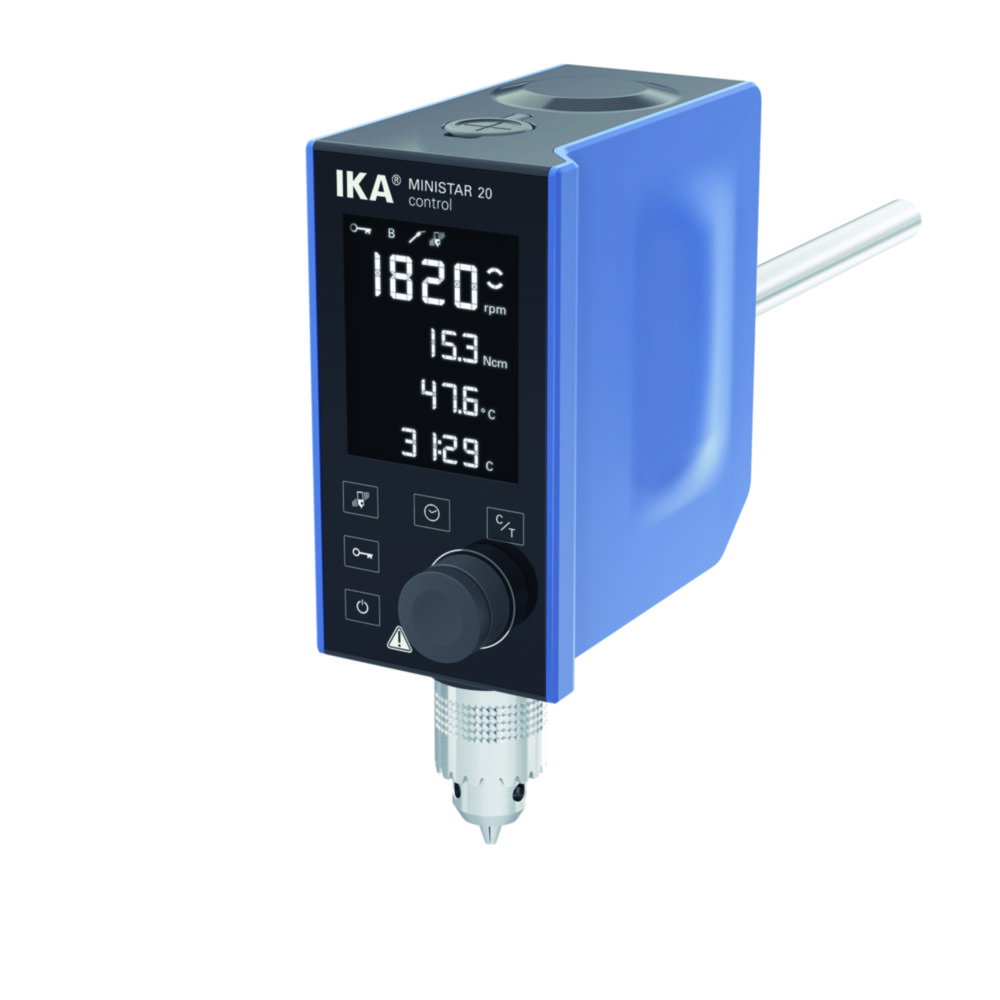

Electronic overhead stirrer MINISTAR 20 control CH plug

Name: Electronic overhead stirrer MINISTAR 20 control CH plug
SKU: 4.715 723
Price: 1237.86 EUR
Availability: InStock

Manufacturer: IKA

SKU: 4.715 723

€1237.86 incl tax

Qty:

Powerful overhead stirrers in a compact design for special applications.

Hardened glass display for maximum visibility and chemical resistance
Vibration sensors detect deviations from permissible thresholds and automatically stop the process
USB interface, e.g. for documenting parameters or installing firmware updates
Bluetooth interface
Easy connection to labworldsoft^®
Temperature measurement directly in the medium with PT1000 temperature sensor
Temperature reading on display
Chemical resistant housing
Continuously adjustable speed
Microprocessor-controlled speed governor for constant rotational speed, even with changes in viscosity
Key lock function
Integrated timer
10 years warranty

Scope of supply: Overhead stirrers incl. Temperature sensor PT1000

Products specifications

Attribute name	Attribute value
Clamping range	0.5 ... 8 mm
Depth	154 mm
Dimensions <br>(WxDxH)	70 x 154 x 193 mm
Display	Digital
Power supply <br>frequency	50/60 Hz
Height	193 mm
IP code	IP 54
Max. clamping width	8 mm
Max. speed	2000 1/min
Max. stirring capacity	15 l
Max. temperature	350 °C
Max. <br>torque	20 Ncm
Max. Viscosity	10000 mPa·s
Max. voltage	240 V
Min. <br>clamping width	0.5 mm
Min. <br>speed	0 1/min
Min. <br>temperature	-10 °C
Min. voltage	100 V
Plug type	CH
Power supply	100 ... 240 V, 50/60 Hz
Rated capacity	69 W
Speed	0 ... 2,000 1/min
Temperature	-10 ... 350 °C
Type	MINISTAR 20 control
Type of <br>auxiliary energy	Mains connection
UNSPSC	41103810
Warranty	10 years
Weight	1.56 kg
Width	70 mm
With connection ext. <br>temperature sensor	Yes
With <br>timer	Yes
