FE 20 Digital Force Gauge
FE 20 Digital Force Gauge FE 20 Digital Force Gauge FE 20 Digital Force Gauge

FE 20 Digital Force Gauge

FE 20 Digital Force Gauge
Manufacturer: KERN & SOHN
SKU: 4.729 718
Vendor: Labfriend Pty Ltd
€177.72 incl tax
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

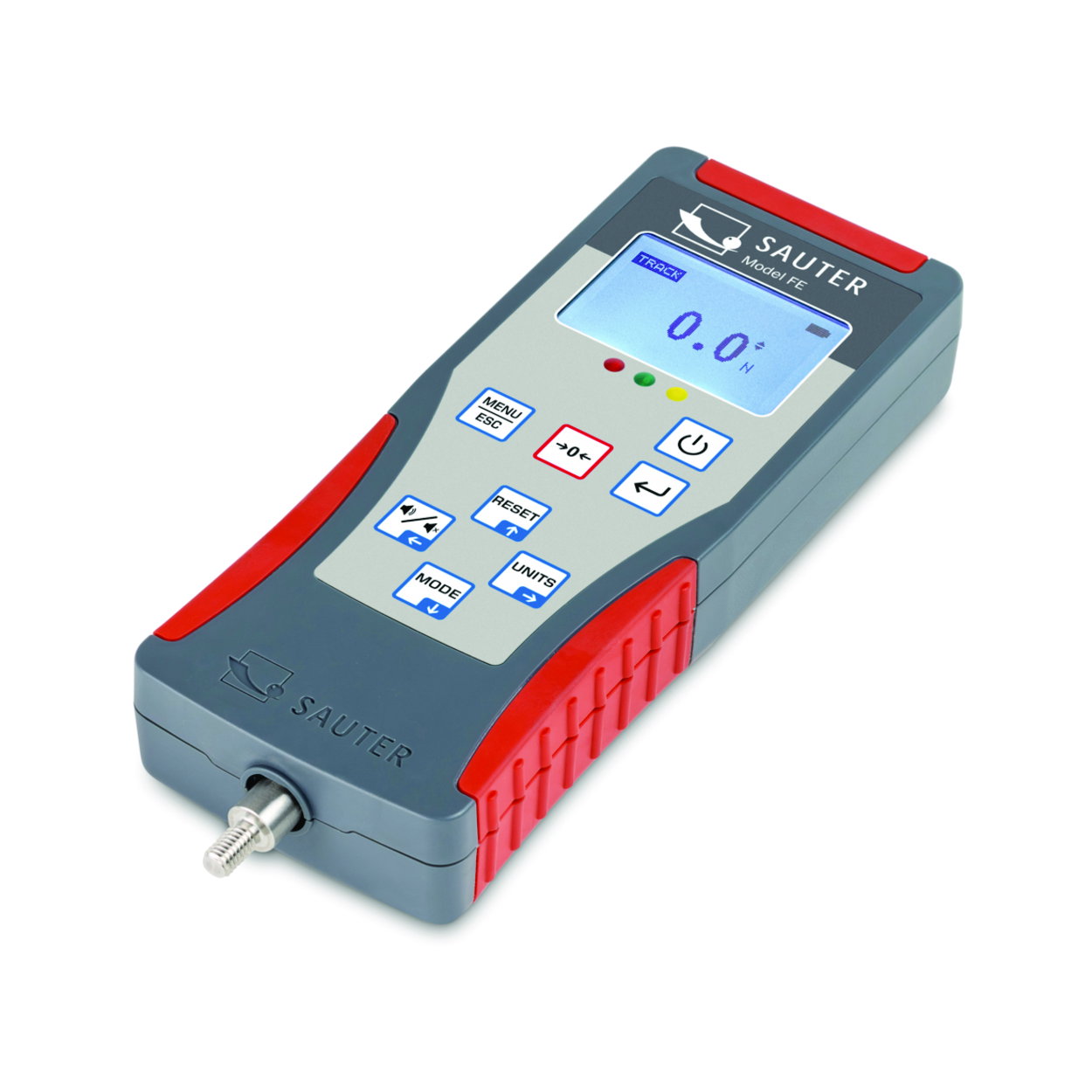

Digital force gauge with pass-fail function for tensile and compressive force measurements.

  • Reversible display with backlighting

  • Peak-hold function

  • Can be mounted on all SAUTER test stands up to 1 kN

  • Measuring with tolerance range (limit-setting function)

  • The process is supported by an audible and visual signal

  • Selectable measuring units: N, kN, kgf, ozf, lbf

  • Rechargeable battery

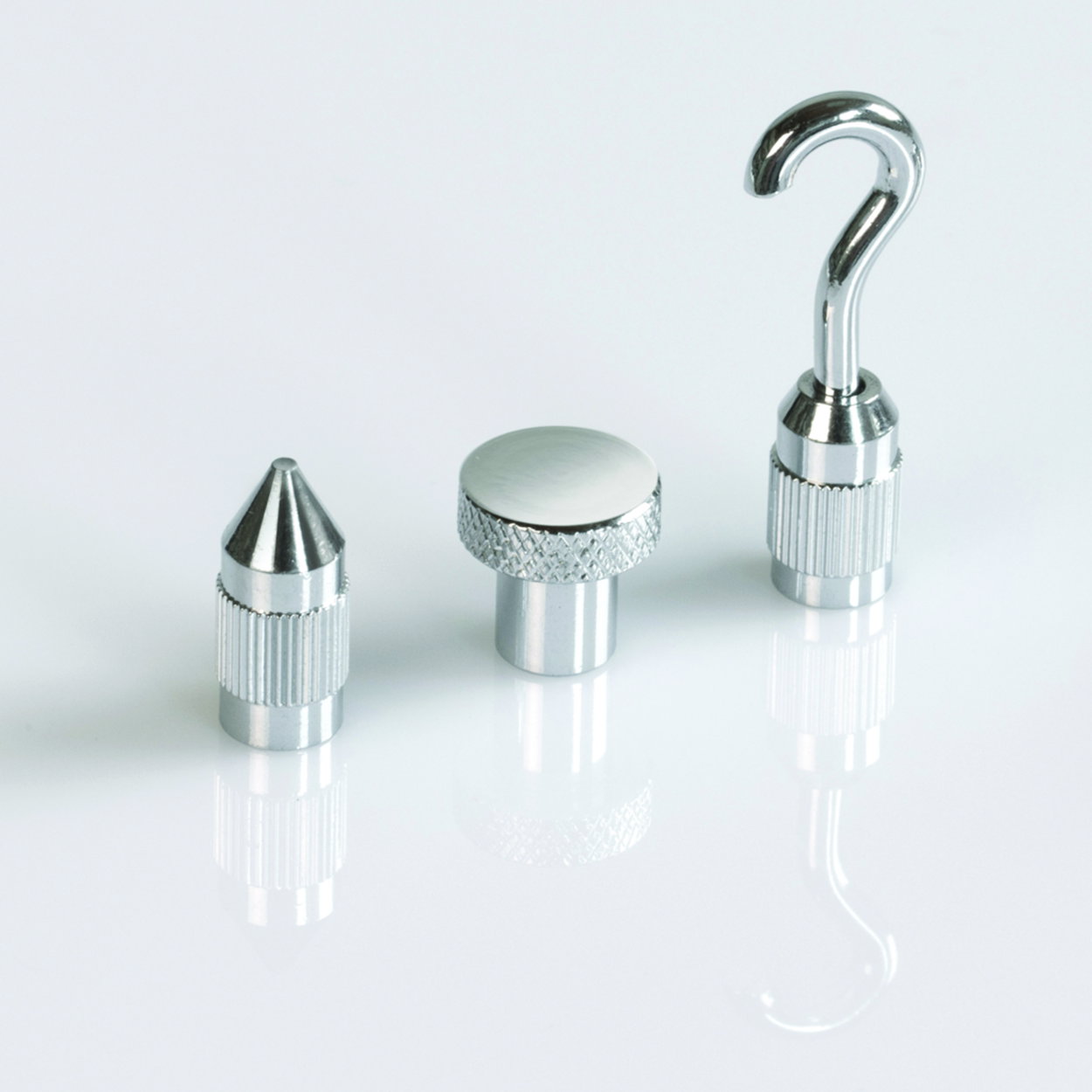

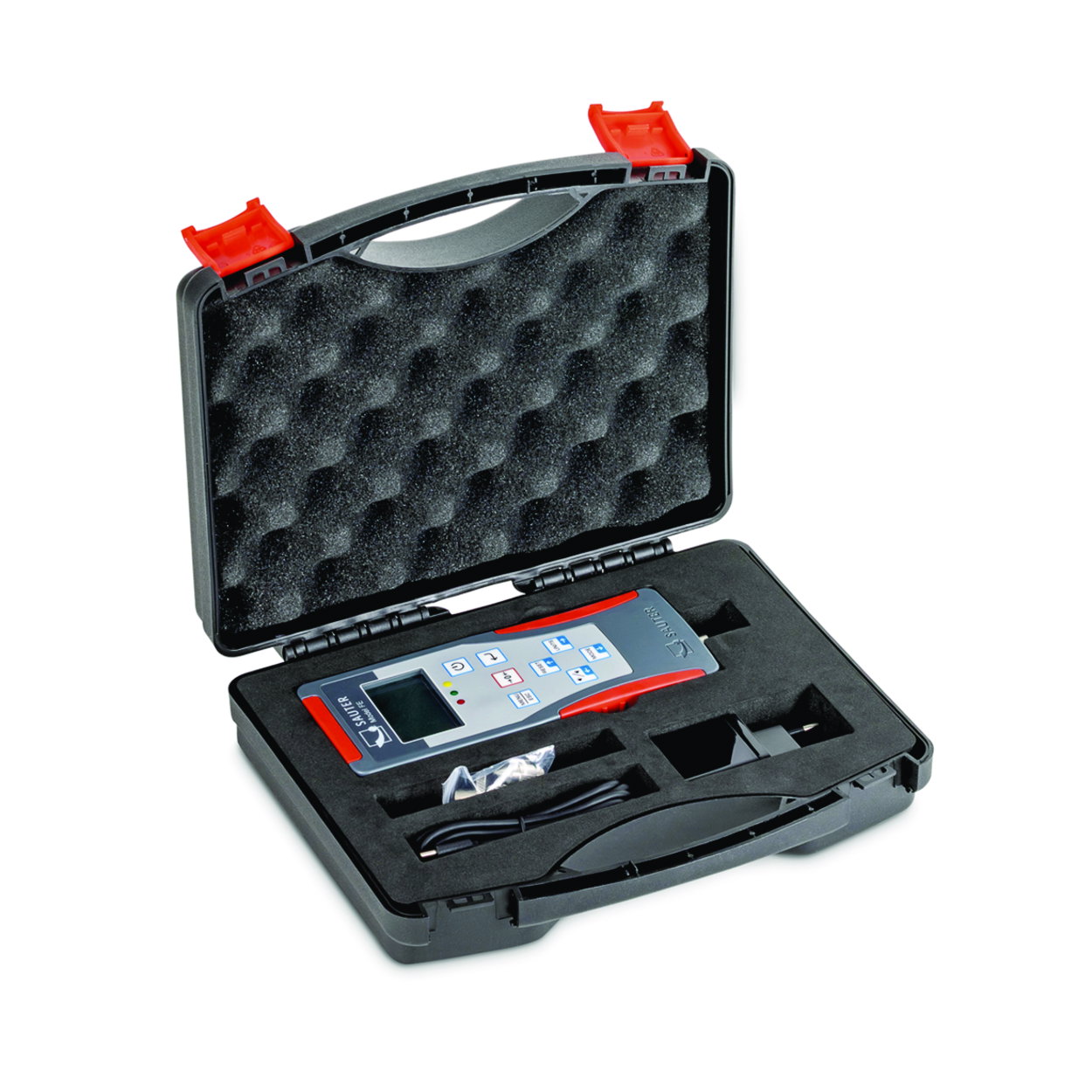

Scope of supply: Force gauge, carrying case, standard attachments, power supply

Products specifications

Attribute nameAttribute value
Battery/<br>rechargeable battery1 x 4.8 V, NiMH
Depth31 mm
Dimensions <br>(WxDxH)71 x 31 x 180 mm
DisplayDigital
Electrochemical <br>systemNiMH
Height180 mm
Material <br>housingABS
Max. measured value20 N
Max. voltage battery/<br>rechargeable battery4.8 V
Max. voltage240 V
Measured range20 N
Min. voltage100 V
No. of batteries/<br>rechargeable batteries1
Plug typeEU
Power supply100 ... 240 V
Readability0,01 N
Tolerance0,3 %
TypeFE 20
Type of <br>auxiliary energyMains connection/rechargeable battery
UNSPSC41111934
Warranty2 years
Weight350 g
Width71 mm
