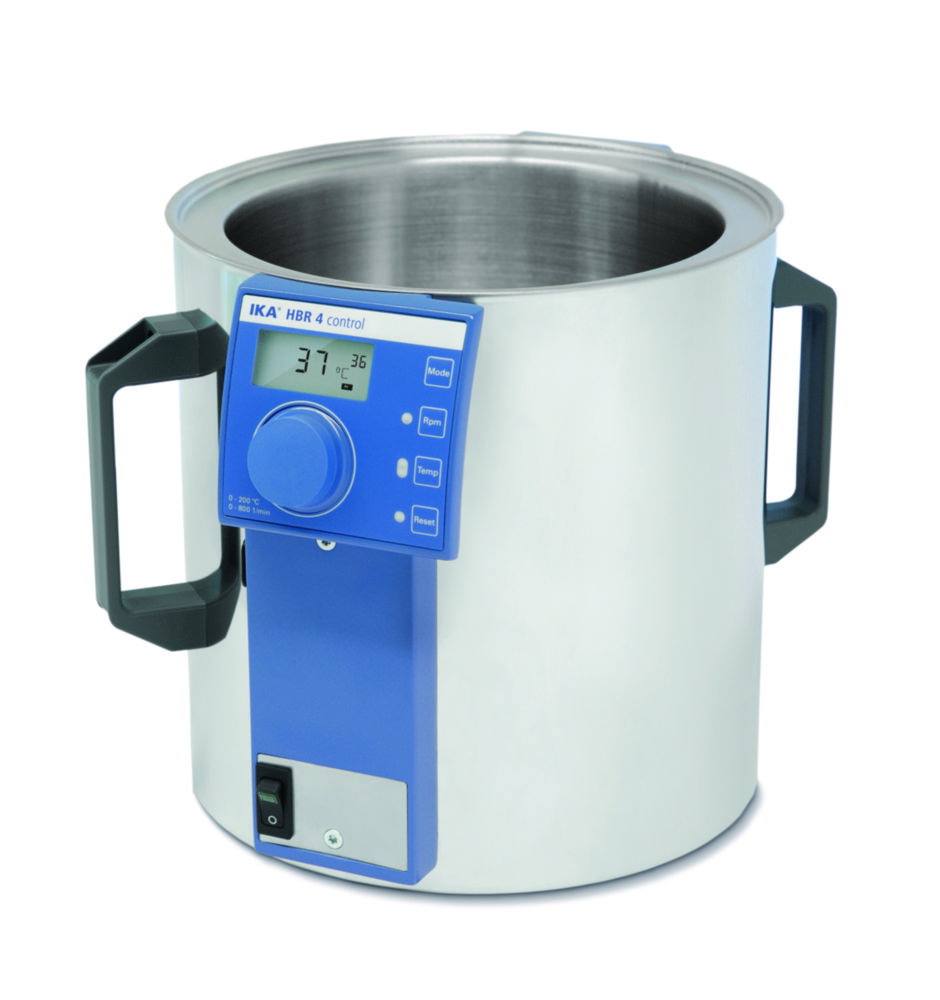

Heating bath HBR 4 control 4 ltr. CH plug

Heating bath HBR 4 control 4 ltr. CH plug

Manufacturer: IKA

SKU: 4.715 765

Vendor: Labfriend Pty Ltd

€4068.91 incl tax

Qty:

The heating bath is noted for:

Cylindrical bath shape

Heating elements integrated into the bath base

Heat transfer media can be low-viscous oil (50 mPas) or water

Two carry handles

Infinitely variable safety temperature limiter according to DIN 12877

Double-jacketed mantle protection against burns

Digital display for target, actual and safety temperatures as well as speed

Integrated magnetic stirrer drive to circulate the tempering fluid, allowing for better heat distribution in the bath

RS 232 interface

Products specifications

Attribute name	Attribute value
Dim. Int.<br>(Ø x H)	200 x 160 mm
Display	Digital
Ext. dim. <br>(WxDxH)	340 x 340 x 250 mm
Ext. depth	340 mm
Ext. <br>height	250 mm
Ext. <br>width	340 mm
Power supply <br>frequency	50/60 Hz
Heating <br>capacity	1000 W
Height <br>int.	160 mm
Int. Ø	200 mm
IP code	IP 20
Material <br>bath	Stainless steel 1.4301
Max. speed	800 1/min
Max. temperature	200 °C
Max. voltage	230 V
Min. <br>speed	150 1/min
Nominal capacity	4 l
Plug type	CH
Power supply	230 V, 50/60 Hz
Speed	150 ... 800 1/min
Temperature	RT, RT ... 200 °C
Type	HBR 4 control
Type of <br>auxiliary energy	Mains connection
UNSPSC	41103702
Weight	4.4 kg
With <br>stirrer drive	Yes
