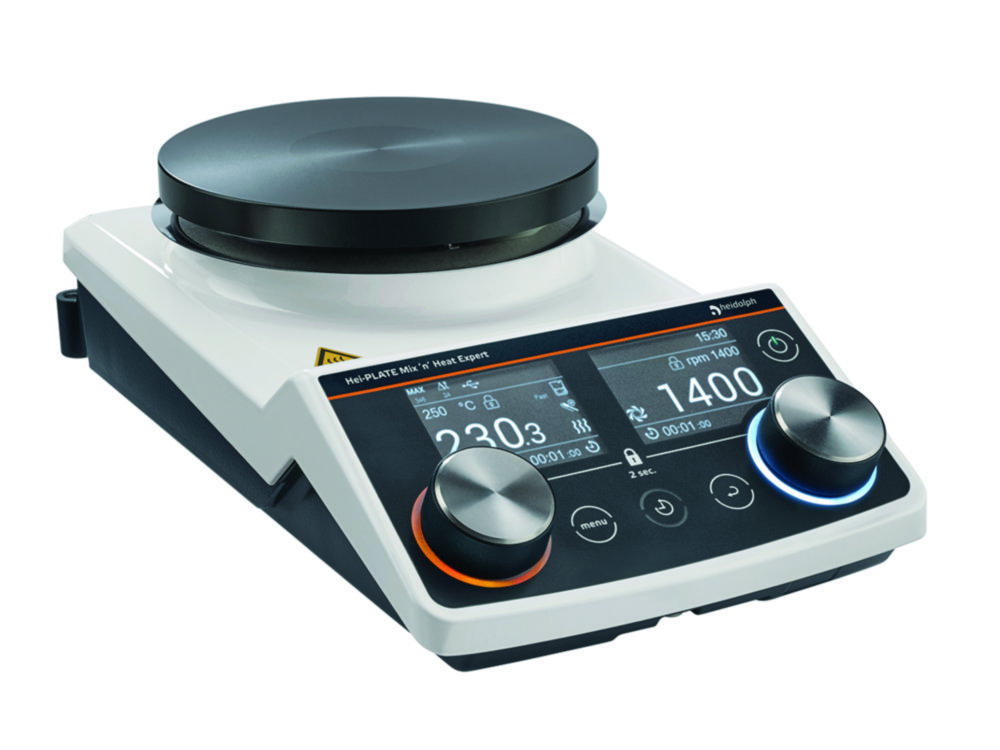

Hei-PLATE Mix'n'Heat Expert (135 mm) UK-plug

Hei-PLATE Mix'n'Heat Expert (135 mm) UK-plug
Manufacturer: Heidolph
SKU: 4.703 216
€1027.10 incl tax
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Magnetic stirrer with one display per main function, as well as separately adjustable timers for the stirring and heating functions, provides overview and flexibility when carrying out experiments. Operation is via two push-and-rotary controls with LED light rings for easy recognition of the active functions.

  • User-friendly menu navigation

  • Different heating modes (FAST, PRECISE, PRECISE+)

  • Connection for optional temperature sensor Pt1000 and double sensor Pt1000

  • Three-stage setting of the stirring speed (start-up behaviour)

  • Adjustable direction of rotation of the magnetic stirring bar

  • Automatic stir bar detection

  • Locking function of the push-and-rotary controls prevents accidental changing of the values

  • Visual residual heat indicator at temperatures above 50 °C protects against burns

  • Patented Kera-Disk® plate made of anodised aluminium

Products specifications

Attribute nameAttribute value
Colour <br>housingWhite
Depth299 mm
Dimensions <br>(WxDxH)168 x 299 x 106 mm
DisplayDigital
Power supply <br>frequency50/60 Hz
Heating <br>capacity800 W
Heating <br>temperature20 ... 350 °C
Height106 mm
IP codeIP 42
Max. heating <br>temperature350 &deg;C
Max. permitted <br>ambient temp.31 &deg;C
Max. relative <br>humidity rate80 %
Max. speed1400 1/min
Max. stirring capacity20 l
Max. voltage230 V
Min. heating <br>temperature20 &deg;C
Min. permitted <br>ambient temperature5 &deg;C
Min. <br>speed100 1/min
No. of stirring <br>positions1
Permitted ambient <br>temperature5 ... 31 °C
Plug typeUK
Power supply230 V, 50/60 Hz
Rated capacity825 W
Speed100 ... 1,400 1/min
TypeHei-PLATE Mix'n'Heat Expert
Type of <br>auxiliary energyMains connection
UNSPSC41103806
Weight3 kg
Width168 mm
With connection ext. <br>temperature sensorYes
With <br>timerYes
Working area Ø135 mm
