Hei-PLATE Sensor Advanced Package Expert (135 mm) CH-plug

Name: Hei-PLATE Sensor Advanced Package Expert (135 mm) CH-plug
SKU: 4.703 222
Price: 1121.71 EUR
Availability: InStock

Manufacturer: Heidolph

SKU: 4.703 222

€1121.71 incl tax

Qty:

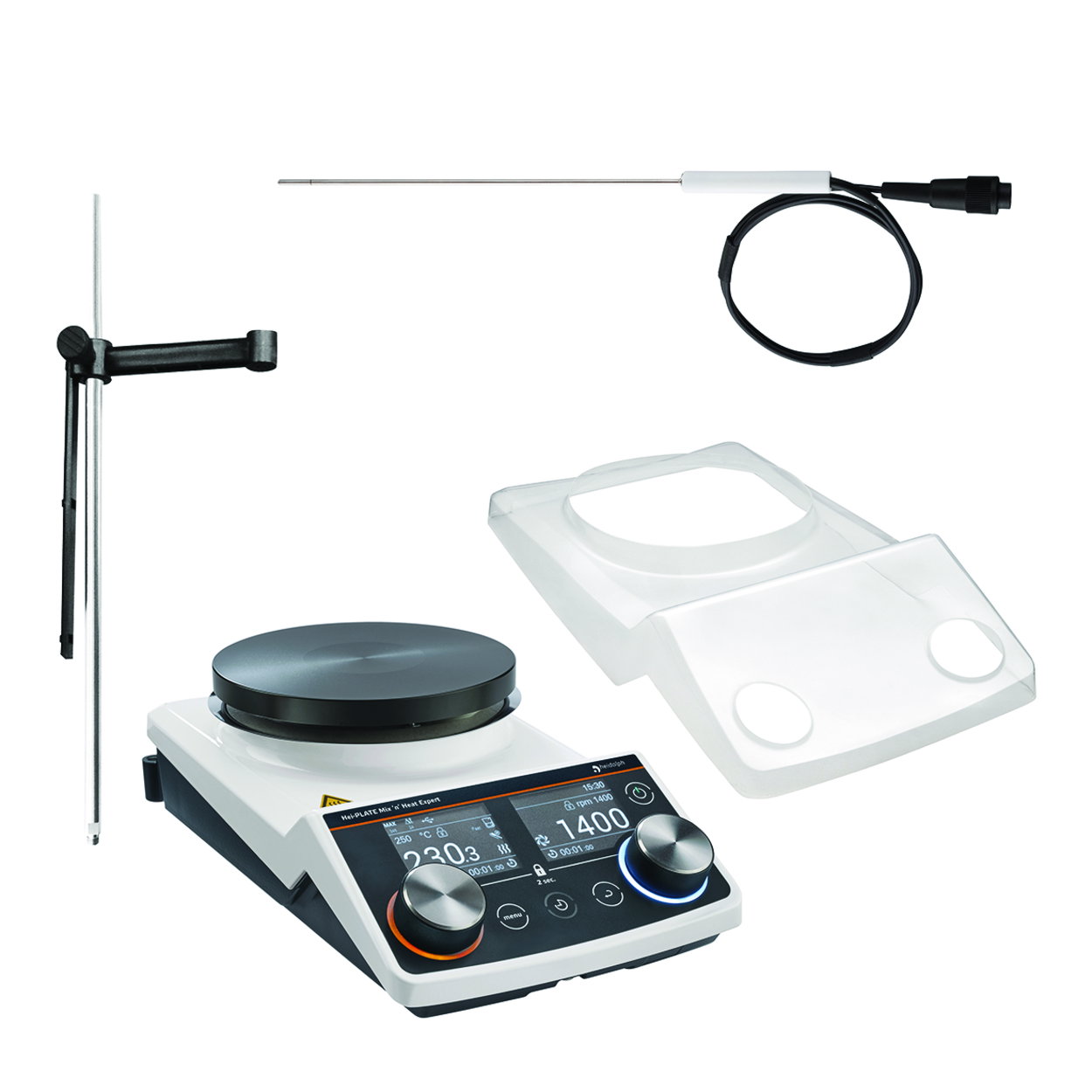

Scope of supply: Magnetic stirrer, Pt1000 temperature sensor, Pt1000 holder with clamping system, silicone protective cover

Products specifications

Attribute name	Attribute value
Depth	299 mm
Dimensions <br>(WxDxH)	168 x 299 x 106 mm
Display	Digital
Power supply <br>frequency	50/60 Hz
Heating <br>capacity	800 W
Heating <br>temperature	20 ... 350 °C
Height	106 mm
IP code	IP 42
Max. heating <br>temperature	350 °C
Max. permitted <br>ambient temp.	31 °C
Max. relative <br>humidity rate	80 %
Max. speed	1400 1/min
Max. stirring capacity	20 l
Max. voltage	230 V
Min. heating <br>temperature	20 °C
Min. permitted <br>ambient temperature	5 °C
Min. <br>speed	100 1/min
No. of stirring <br>positions	1
Permitted ambient <br>temperature	5 ... 31 °C
Plug type	CH
Power supply	230 V, 50/60 Hz
Rated capacity	825 W
Speed	100 ... 1,400 1/min
Type	Hei-PLATE Mix'n'Heat Expert Sensor Advanced
Type of <br>auxiliary energy	Mains connection
UNSPSC	41103806
Weight	3 kg
Width	168 mm
With connection ext. <br>temperature sensor	Yes
With <br>timer	Yes
Working area Ø	135 mm
