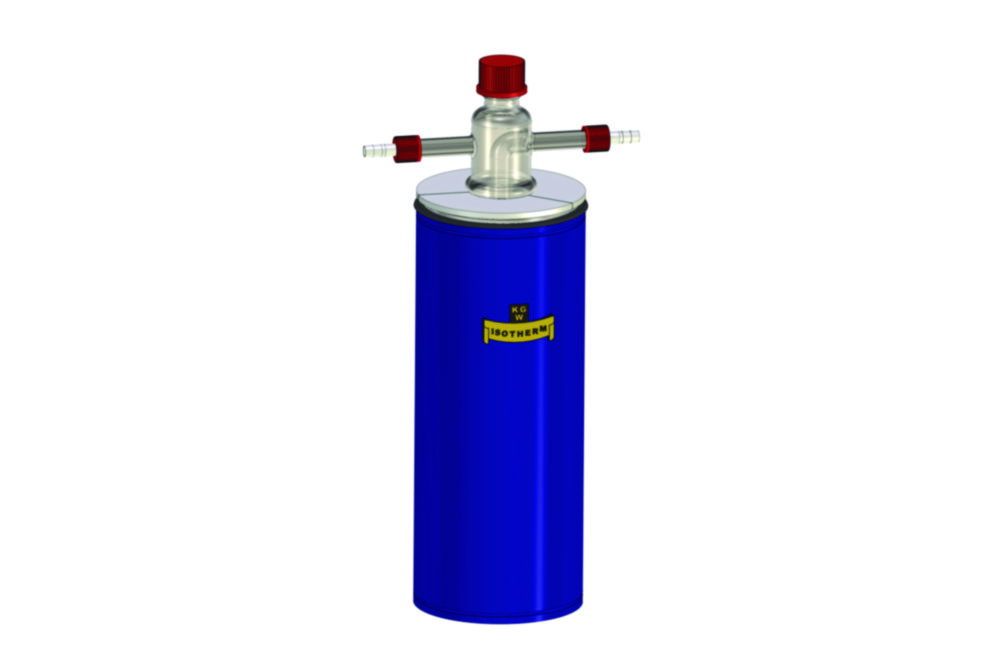

KGW Schieder Cold Trap Type KFL 29-GL-A Complete with Dewar Flask 18°C and Plastic Ring and Drain Opening

The KGW Schieder Cold Trap Type KFL 29-GL-A is a high-quality, efficient cooling unit designed to protect laboratory equipment by capturing and condensing vapours. Its extended condensate area allows the collection of larger volumes of condensate, while the integrated glass thread GL 32 with a screw cap spout ensures easy drainage. The unit includes a Dewar flask type 18 C and a support ring, providing excellent stability and performance for demanding laboratory cooling and vacuum applications.

Key Features:

• Brand: KGW Schieder
• Model: KFL 29-GL-A
• Material: High-quality, chemically resistant components for long-term use
• Condensate Capacity: Extended condensate area capable of holding larger volumes
• Cold Trap Thread: Glass thread GL 32 with screw cap spout for controlled condensate removal
• Connection Versions:
  • S 29 = spherical ground joint S 29
  • O 29 = spherical ground joint S 29 with O-ring seal
  • GL 18 = glass thread GL 18 with PTFE olive Ø 10 mm
• Application: Ideal for vapour condensation and cooling in laboratory systems

Scope of Supply:

• Cold trap
• Support ring
• Dewar flask type 18 C

Note: The standard assembly is designed for use with LN₂ as coolant. When using CO₂ and acetone, please order the CO₂ wire basket separately.

The KGW Schieder Cold Trap Type KFL 29-GL-A combines precision design, durability, and efficiency—making it an excellent choice for laboratories that require effective vapour condensation and safe, controlled low-temperature operation.
