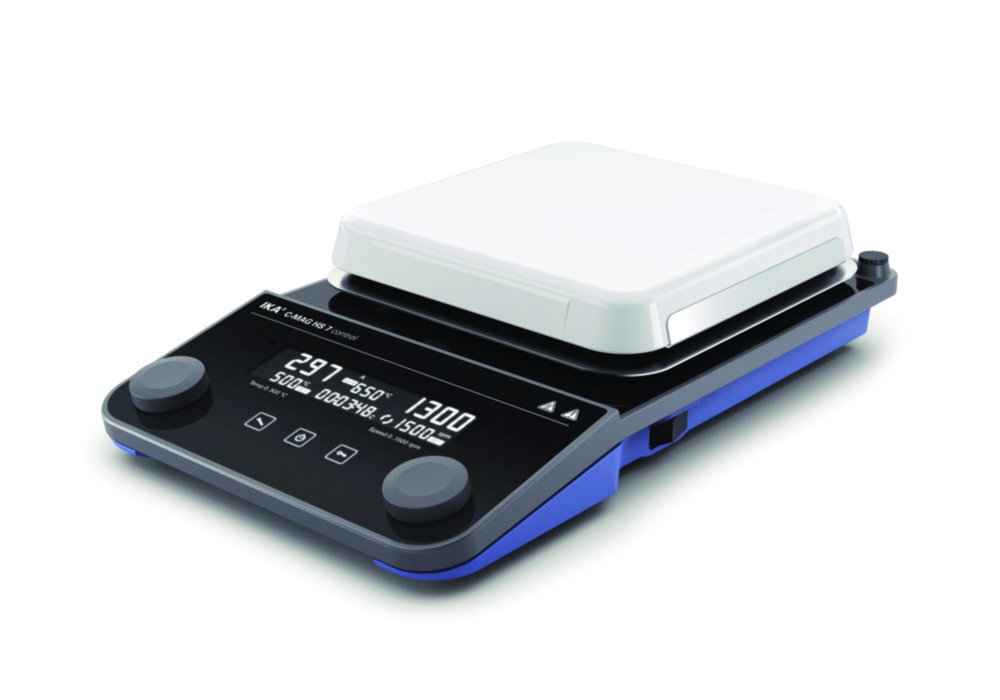

Magnetic stirrer C-MAG HS 7 control S 2 ceramic plate, with heating with UK plug

Magnetic stirrer C-MAG HS 7 control S 2 ceramic plate, with heating with UK plug
Manufacturer: IKA
SKU: 6.522 337
€1008.39 incl tax
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
The magnetic stirrer C-Mag HS 7 control has a square top made of ceramic which offers excellent chemical resistance. The C-Mag HS 7 control improves over time with regular firmware updates. Control of kinetics and sensitive reactions are supported by the integrated timer and counter function.
  • Alteration of the stirring direction possible

  • Clearly arranged LCD display

  • Temperature control directly in the media with PT1000 temperature sensor. The control accuracy is ±0.5 °C.

  • Adjustable safety circuit up to 650 °C

  • IKA SmartTemp® hot surface warning to prevent burns

  • Elevated control panel for protection against leaking liquids

  • Timer

  • USB / RS232 interface

  • 10 years warranty


Scope of supply: Magnetic stirrer, temperature sensor PT 1000.60, magnetic stirring bar IKAFLON® 30 and IKAFLON® 40, screw driver, USB A-B cable

Products specifications

Attribute nameAttribute value
Control accuracy <br>heating temperature±5 &deg;C
Depth354 mm
Depth <br>working area180 mm
Dimensions <br>(WxDxH)220 x 354 x 88 mm
DisplayDigital
Power supply <br>frequency50/60 Hz
Heating <br>capacity1000 W
Heating <br>temperatureRT ... 500 °C
Height88 mm
IP codeIP 21
Material <br>housingGlass
Material <br>stirring <br>surfaceCeramic
Max. <br>heating rate5 &deg;C/min
Max. heating <br>temperature500 &deg;C
Max. permitted <br>ambient temp.40 &deg;C
Max. relative <br>humidity rate80 %
Max. safety <br>temperature650 &deg;C
Max. speed1500 1/min
Max. stirring capacity20 l
Max. voltage230 V
Min. permitted <br>ambient temperature5 &deg;C
Min. safety <br>temperature100 &deg;C
Min. <br>speed50 1/min
Min. voltage220 V
No. of stirring <br>positions1
Permitted ambient <br>temperature5 ... 40 °C
Plug typeUK
Power supply220 ... 230 V, 50/60 Hz
Rated capacity1020 W
Safety <br>temperature100 ... 650 °C
Speed50 ... 1,500 1/min
TypeC-MAG HS7 control
Type of <br>auxiliary energyMains connection
UNSPSC41103806
Warranty10 years
Weight4 kg
Width220 mm
Width <br>working area180 mm
With connection ext. <br>temperature sensorYes
With <br>timerYes
Working area <br>(WxD)180 x 180 mm
