Magnetic Stirrer I-MAG S 3 w/o heating CH-plug

Magnetic Stirrer I-MAG S 3 w/o heating CH-plug
Manufacturer: IKA
SKU: 4.684 810
€3948.94 incl tax
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

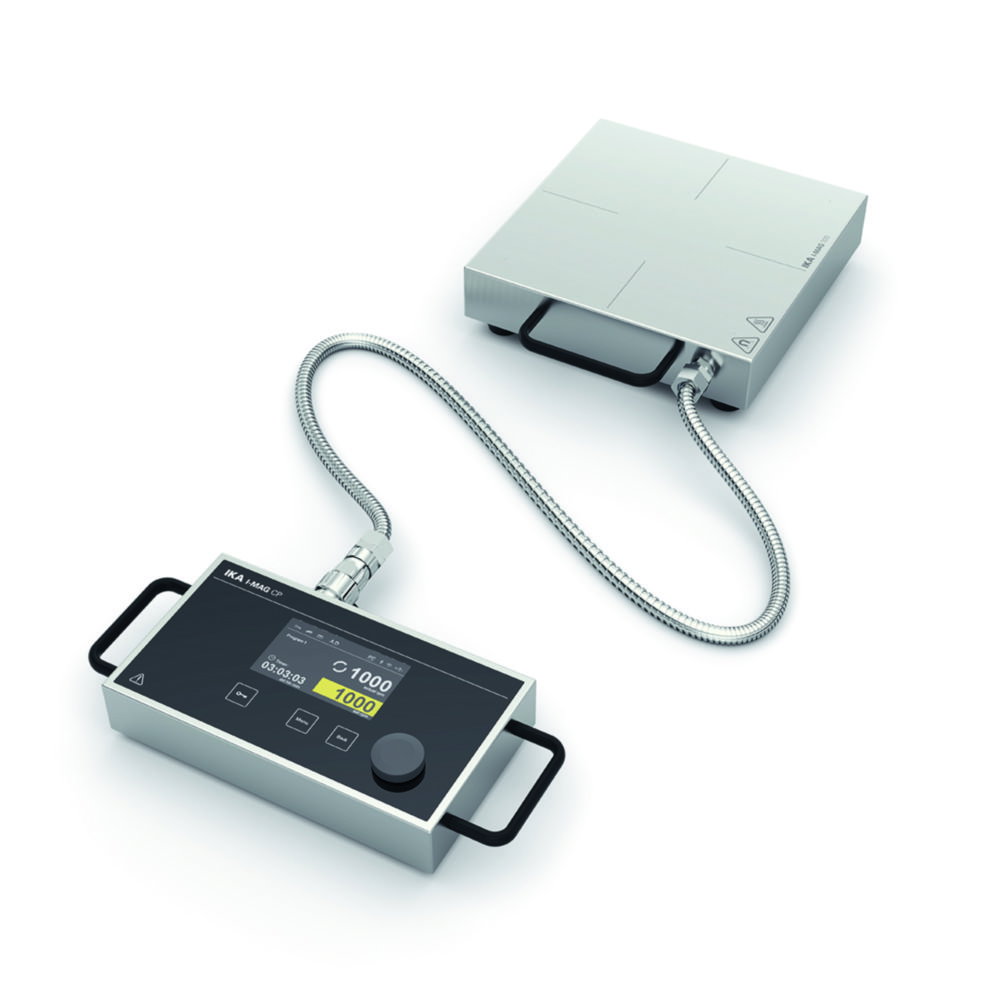

Without heating. Powerful and compact magnetic stirrer for stirring quantities up to 300 l (with optional I-MAG SP installation frame).

  • Cable-connected operating unit (IP 22) with various interfaces for operation via foot switch or operating knob as well as simple integration into networks

  • Drive with enclosed stainless steel housing (IP 64), consisting of high-torque, wear-free motor and magnetic coupling with high-performance neodymium magnets

  • Adjustable start-up speed prevents the magnetic stirring bar from breaking off

  • Integrated detection of the magnetic stir bar coupling

  • Reproducible results thanks to electronically controlled motor for very stable speeds, even under load

  • Ergonomic mounting of the operating unit on drums with optional universal holder I-MAG UHC


Scope of supply: I-MAG magnetic stirrer, IKAFLON 90 slide magnetic stirring bars, USB cable, adapter for analogue interfaces

Products specifications

Attribute nameAttribute value
Depth300 mm
Depth <br>working area260 mm
Dimensions <br>(WxDxH)260 x 300 x 70 mm
DisplayDigital
Power supply <br>frequency50/60 Hz
Height70 mm
IP codeIP 64
Material <br>housingStainless steel
Material <br>stirring <br>surfaceStainless steel
Max. permitted <br>ambient temp.40 &deg;C
Max. relative <br>humidity rate80 %
Max. speed1500 1/min
Max. stirring capacity50 l
Max. voltage240 V
Min. permitted <br>ambient temperature5 &deg;C
Min. <br>speed100 1/min
Min. voltage100 V
No. of stirring <br>positions1
Permitted ambient <br>temperature5 ... 40 °C
Plug typeCH
Power supply100 ... 240 V, 50/60 Hz
Rated capacity140 W
Speed100 ... 1,500 1/min
TypeI-MAG
Type of <br>auxiliary energyMains connection
UNSPSC41103806
Weight8 kg
Width260 mm
Width <br>working area260 mm
With <br>timerNo
Working area <br>(WxD)260 x 260 mm
