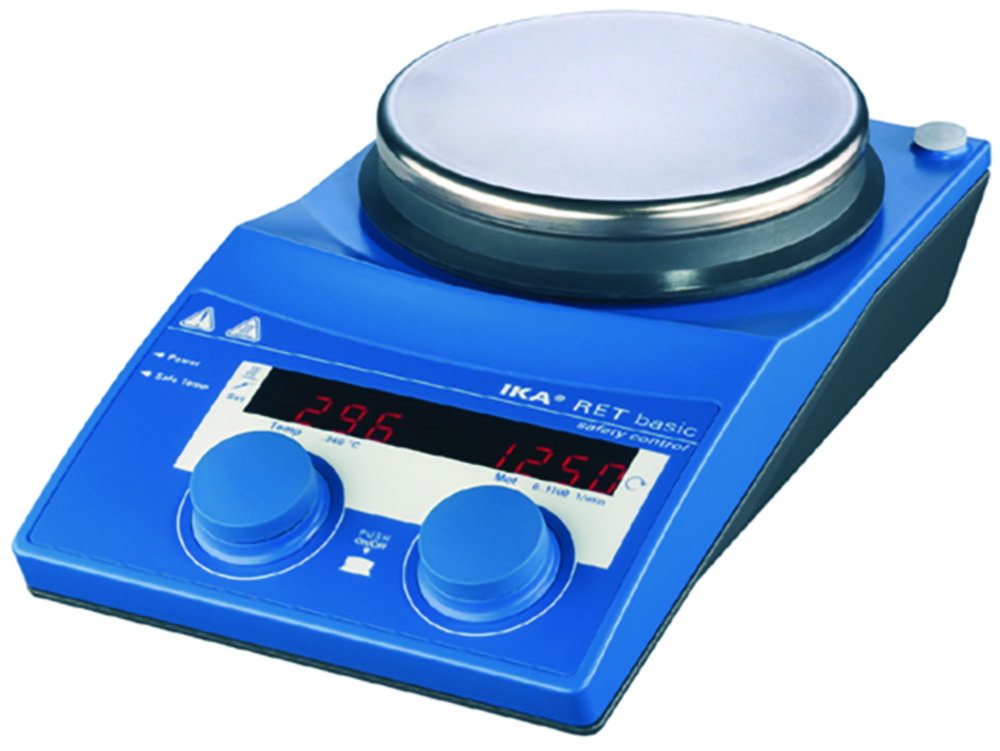

Magnetic stirrer RET basic S 1 IKAMAG®, hotplate diam. 135 mm stainless steel heating plate

Magnetic stirrer RET basic S 1 IKAMAG®, hotplate diam. 135 mm stainless steel heating plate
Manufacturer: IKA
SKU: 7.623 155
€1269.12 incl tax
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Wide speed range from 0/50 to 1700 rpm. Integrated temperature control. Incl. PT 1000 temperature sensor. Exact temperature and speed setting via digital display, even when switched off. Set safety temperature limit displayed digitally. Hot Top indicator: hot surface warning to prevent burns. Digital error code display.
  • With adjustable safety circuit of heating plate temperature (50 to 380 °C)

  • Safety magnetic stirrer with heating, suitable for unsupervised operation

  • Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control

  • The control accuracy with PT1000 temperature sensor is ±1 °C

  • High level of safety thanks to improved heat control technology

  • Enclosed assembly (IP 42) guarantees long service life

  • Very broad temperature range (RT to 340 °C)

  • Extremely fast heating times

  • Electronic speed control

  • High magnetic adhesion

  • Incl. protection cover H 100

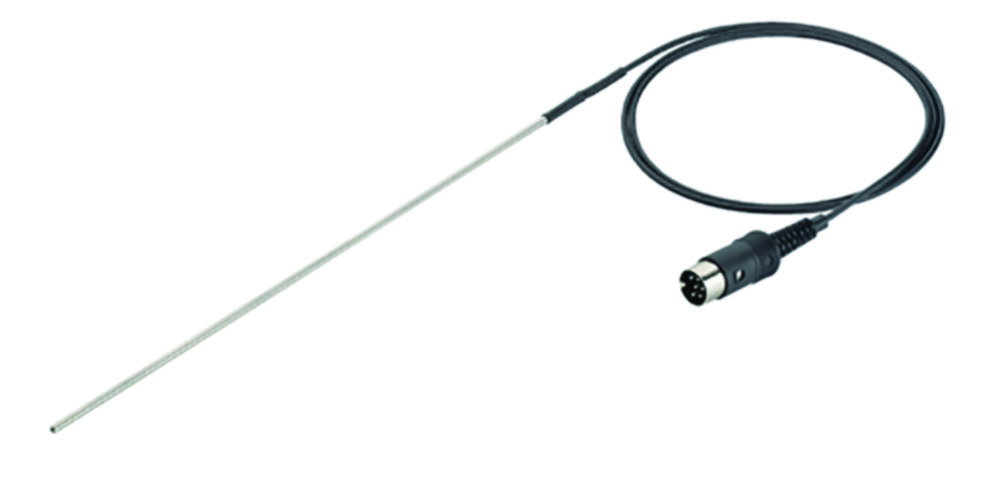

Scope of supply: Magnetic stirrer RET basic, temperature sensor PT 1000.60, magnetic stirring bar IKAFLON® 20, IKAFLON® 30 and IKAFLON® 40, screw driver, protection cover

Products specifications

Attribute nameAttribute value
Depth270 mm
Dimensions <br>(WxDxH)160 x 270 x 95 mm
DisplayDigital
Power supply <br>frequency50/60 Hz
Heating <br>capacity600 W
Heating <br>temperatureRT ... 340 °C
Height95 mm
IP codeIP 42
Material <br>stirring <br>surfaceStainless steel 1.4301
Max. <br>heating rate7 &deg;C/min
Max. heating <br>temperature340 &deg;C
Max. permitted <br>ambient temp.40 &deg;C
Max. relative <br>humidity rate80 %
Max. safety <br>temperature360 &deg;C
Max. speed1700 1/min
Max. stirring capacity20 l
Max. voltage115 V
Min. permitted <br>ambient temperature5 &deg;C
Min. safety <br>temperature50 &deg;C
Min. <br>speed50 1/min
No. of stirring <br>positions1
Permitted ambient <br>temperature5 ... 40 °C
Plug typeUS
Power supply115 V, 50/60 Hz
Rated capacity630 W
Safety <br>temperature50 ... 360 °C
Speed50 ... 1,700 1/min
TypeRET basic
Type of <br>auxiliary energyMains connection
UNSPSC41103806
Weight2500 g
Width160 mm
With connection ext. <br>temperature sensorYes
With <br>timerNo
Working area Ø135 mm
