MATRIX Orbital, universal carrier CH plug

MATRIX Orbital, universal carrier CH plug
Manufacturer: IKA
SKU: 4.715 731
€1588.25 incl tax
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Powerful thermoshaker available for samples with small volumes, e.g. blood samples, pharmaceutical agents, DNA/RNA samples, DNA/RNA samples or Elisa assays. Without cross-contamination and with an optimal mixing result.
  • Large and clear display with a simple menu structure allows for intuitive operation

  • Two different speed modes for optimal mixing

  • Speed adjustment according to insert, attachment and filling volume

  • Timer (1 s to 6000 min)

  • Robust aluminum die cast housing

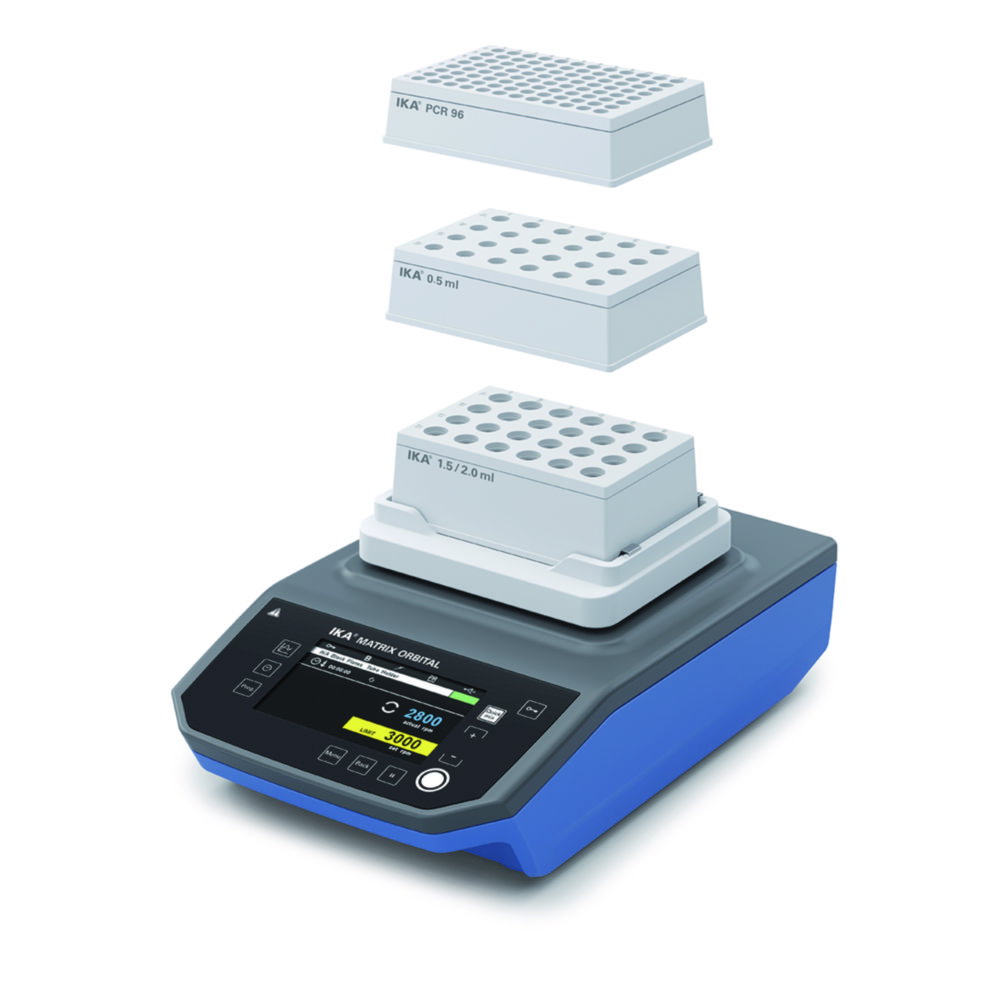

Scope of supply: Shaker, 3 inserts (1 x 0.5 ml tubes, 1 x 1.5/2.0 ml tubes and 1 x 0.2 ml PCR tubes)

Products specifications

Attribute nameAttribute value
Depth318 mm
Dimensions <br>(WxDxH)198 x 318 x 124 mm
Power supply <br>frequency50/60 Hz
Height124 mm
IP codeIP 21
Max. loading <br>capacity0.3 kg
Max. permitted <br>ambient temp.40 &deg;C
Max. relative <br>humidity rate80 %
Max. speed3000 1/min
Max. voltage240 V
Min. permitted <br>ambient temperature5 &deg;C
Min. <br>speed300 1/min
Min. voltage100 V
Permitted ambient <br>temperature5 ... 40 °C
Plug typeCH
Power supply100 ... 240 V, 50/60 Hz
Rated capacity80 W
Shaking stroke3 mm
Speed300 ... 3,000 1/min
TypeMatrix Orbital
Type of movementOrbital
UNSPSC41103814
Weight7.2 kg
Width198 mm
With continuous <br>operationYes
With <br>timerYes
With <br>touch operationNo
