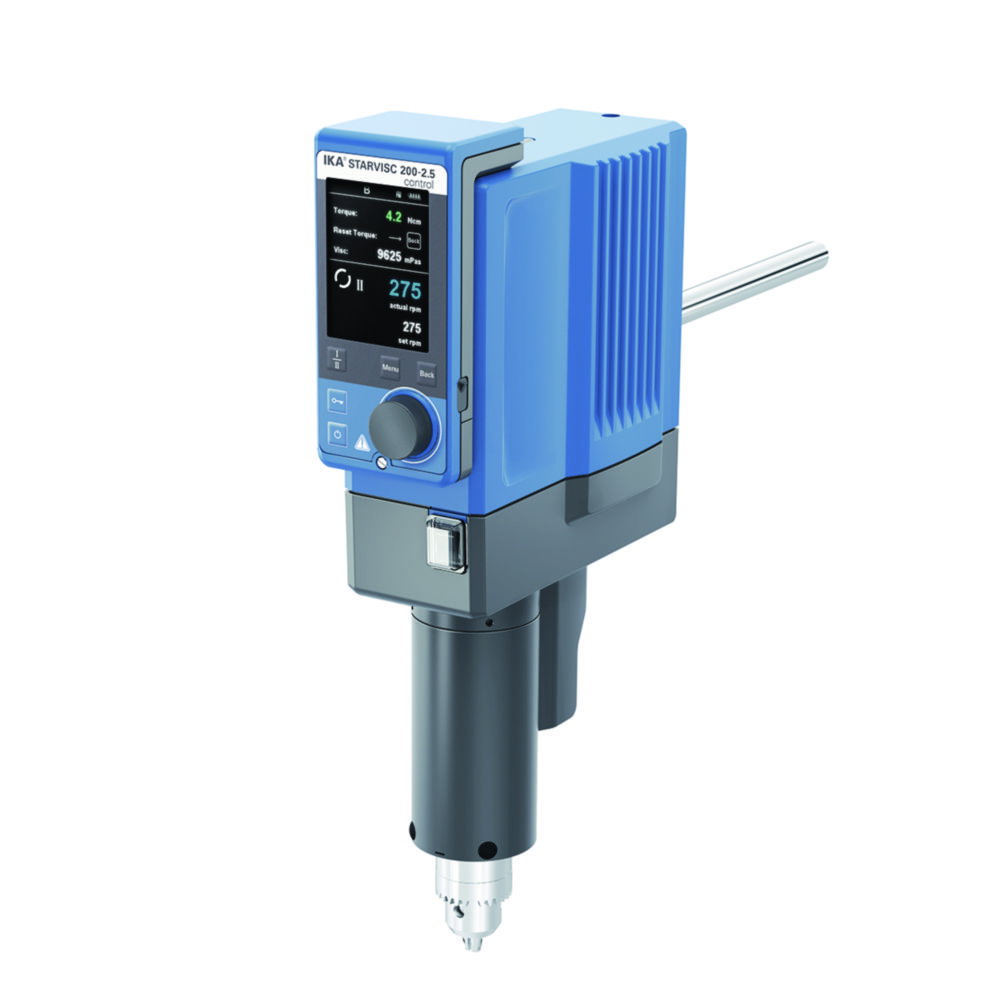

Measuring stirrer STARVISC 200-2.5 control CH plug

Name: Measuring stirrer STARVISC 200-2.5 control CH plug
SKU: 4.715 753
Price: 7608.48 EUR
Availability: InStock

Manufacturer: IKA

SKU: 4.715 753

Vendor: Labfriend Pty Ltd

€7608.48 incl tax

Qty:

High precision torque-measuring stirrer with direct display of the measured values for a wide range of applications. Especially suitable for product development, because precise measuring is taking place during the manufacturing process and the viscosity can be calculated via the user friendly display. Samples no longer have to be taken separately.

Viscosity calculation

Stepless adjustable speed (two speed ranges)

Speed range I: 6 to 400 rpm

Speed range II: 30 to 2000 rpm

With detachable remote control - Wireless Controller (WiCo)

Powerful stirrer for highly viscous substances

Products specifications

Attribute name	Attribute value
Clamping range	0.5 ... 10 mm
Depth	231 mm
Dimensions <br>(WxDxH)	91 x 231 x 395 mm
Display	Digital
Power supply <br>frequency	50/60 Hz
Height	395 mm
IP code	IP 40
Max. clamping width	10 mm
Max. speed	2000 1/min
Max. stirring capacity	100 l
Max. temperature	350 °C
Max. <br>torque	200 Ncm
Max. Viscosity	100000 mPa·s
Max. voltage	230 V
Min. <br>clamping width	0.5 mm
Min. <br>speed	6 1/min
Min. <br>temperature	-10 °C
Plug type	CH
Power supply	230 V, 50/60 Hz
Rated capacity	130 W
Speed	6 ... 2,000 1/min
Temperature	-10 ... 350 °C
Type	STARVISC 200-2.5 control
Type of <br>auxiliary energy	Mains connection
UNSPSC	41103810
Weight	5.9 kg
Width	91 mm
With connection ext. <br>temperature sensor	Yes
With <br>timer	Yes
