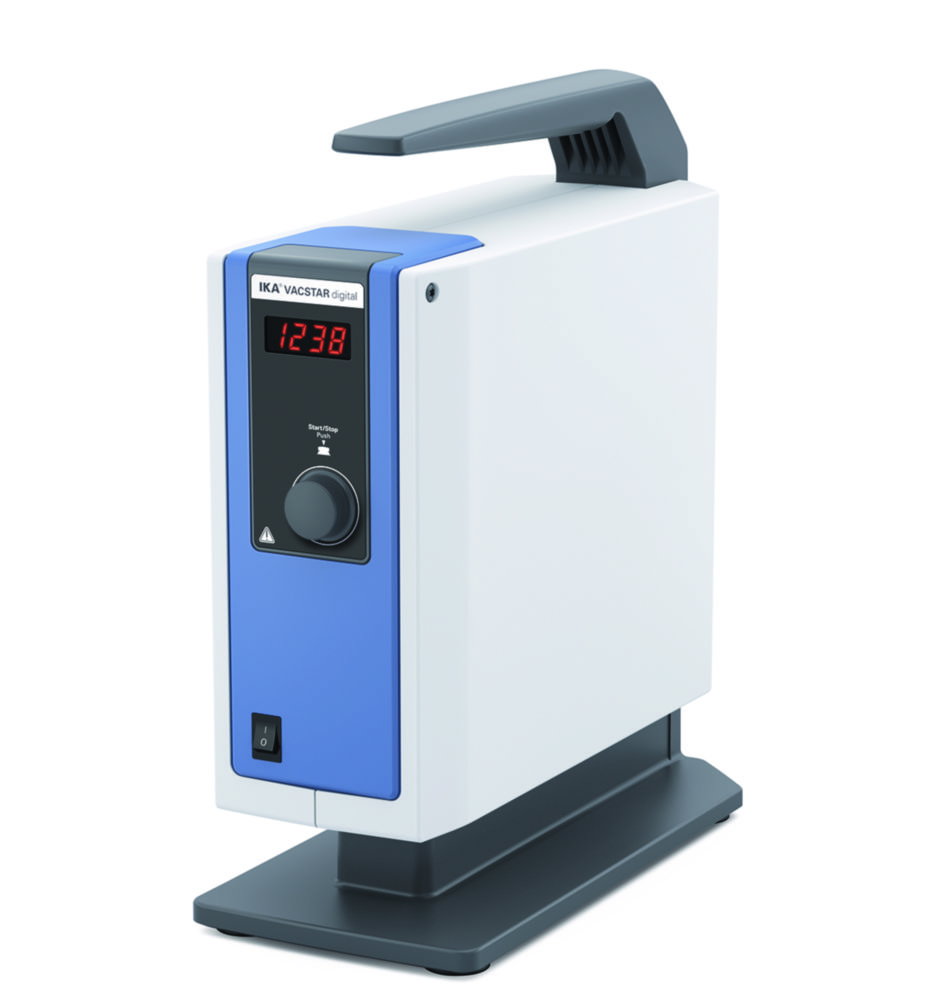

Membrane vacuum pump VACSTAR digital CH plug

Membrane vacuum pump VACSTAR digital CH plug
Manufacturer: IKA
SKU: 4.715 758
€2497.11 incl tax
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
The four-chamber membrane vacuum pump convinces with its high suction capacity, low space requirement and high serviceability. The setting of the parameters is carried out through a rotary-push button over a digital display showing current rpm. It is used for dry and oil-free applications in the laboratory. The membranes of the pump are particularly chemical resistant.

Scope of supply: Vacuum hose (1 m), silencer, USB A-B cable, connecting cable

Products specifications

Attribute nameAttribute value
Depth370 mm
Dimensions <br>(WxDxH)150 x 370 x 375 mm
Flow rate22 l/min
Power supply <br>frequency50/60 Hz
Height375 mm
IP codeIP 20
Max. permitted <br>ambient temp.40 &deg;C
Max. voltage240 V
Min. permitted <br>ambient temperature5 &deg;C
Min. voltage100 V
No. of stages4
Noise level54 db(A)
Plug typeCH
Power supply100 ... 240 V, 50/60 Hz
TypeVACSTAR digital
Type of <br>auxiliary energyMains connection
Ultimate vacuum2 mbar
UNSPSC40151502
Weight11.5 kg
Width150 mm
