Rotary evaporator RV 10 digital pro V double complete UK plug

Rotary evaporator RV 10 digital pro V double complete UK plug
Manufacturer: IKA
SKU: 4.715 699
€19744.70 incl tax
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

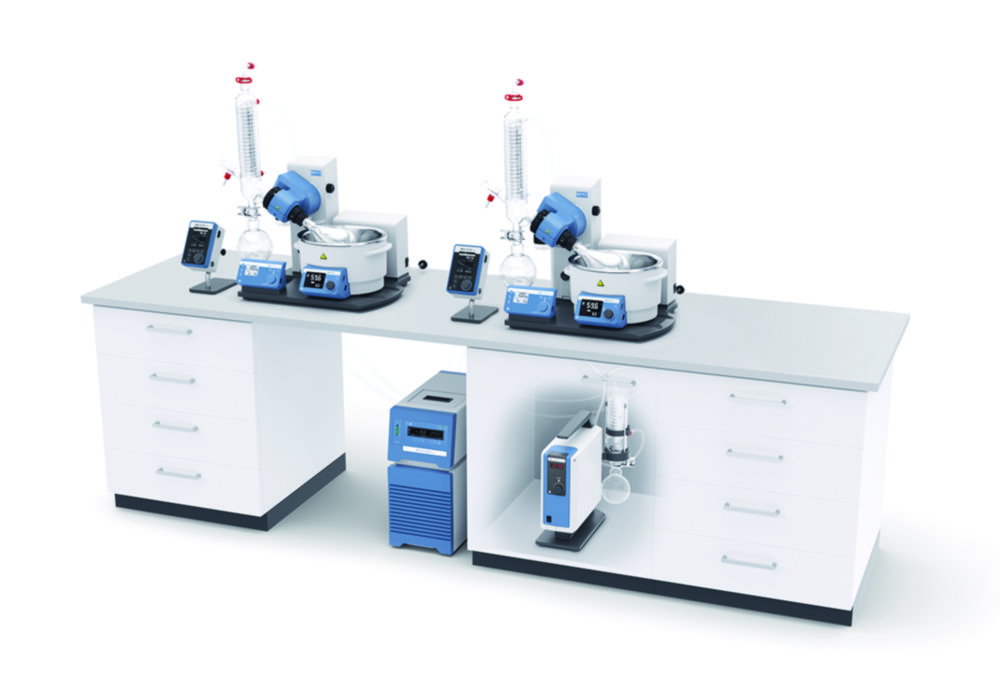

Complete solution for a rotary evaporator setup with two rotary evaporators including two HB digital heating baths and two vertical glassware sets are the robust and reliable companions for all distillation tasks. They are characterised by innovative features and remote control of the various components as well as increased safety due to motor-driven lift, safety temperature circuit and dry-running protection.

With extremely space-saving vacuum pump VACSTAR digital plus vacuum safety emmision condenser VSE 1. A minimum vacuum of 2 mbar can be achieved. One vacuum source is sufficient to supply both rotary evaporators.
Controlling is done via the two included vacuum controllers VC 10 pro.
The powerful and energy-efficient RC 2 GREEN basic recirculating chiller is suitable for cooling tasks down to -30 °C. The demand- and speed-controlled compressor achieves a cooling capacity of 800 W.


Scope of supply: 2 x Rotary evaporator, vacuum pump VACSTAR digital + vacuum safety emmision condenser VSE 1, 2 x vacuum controller VC 10 pro, recirculating cooler RC 2 GREEN basic, 2 x table stand VC 10.400, 2 x hose set RV 10.5005, 2 x non-return valves VC 10.300, data cable PC 1.3, 2 x Y-distributor

Products specifications

Attribute nameAttribute value
CondenserVertical
Cooling <br>surface1600 cm²
Power supply <br>frequency50/60 Hz
GlasswareWithout coating
Heating <br>capacity1300 W
IP codeIP 20
LiftElectrical
Lifting path140 mm
Max. speed280 1/min
Max. temperature180 &deg;C
Max. voltage240 V
Max. volume bath3 l
Min. <br>speed5 1/min
Min. voltage220 V
Plug typeUK
Power supply220 ... 240 V, 50/60 Hz
Speed5 ... 280 1/min
TemperatureRT, RT ... 180 °C
TypeRV 10 digital pro V double Complete
Type of <br>auxiliary energyMains connection
Ultimate vacuum1050 mbar
UNSPSC41104804
