Rotary evaporator RV 10 digital V Starter Solution S 2, UK plug

Rotary evaporator RV 10 digital V Starter Solution S 2, UK plug
Manufacturer: IKA
SKU: 4.699 423
€8387.86 incl tax
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
The Starter Solution is the complete package for the rotary evaporator setup. The RV 10 digital offers features such as smooth start, left-right interval and timer function. The motorized lift has an automated lift-out function in case of power outage to prevent superheating of the solvent. The RS 232 interface allows for remote control via the software labworldsoft®. The heating bath is controlled from the main unit via the IR interface.

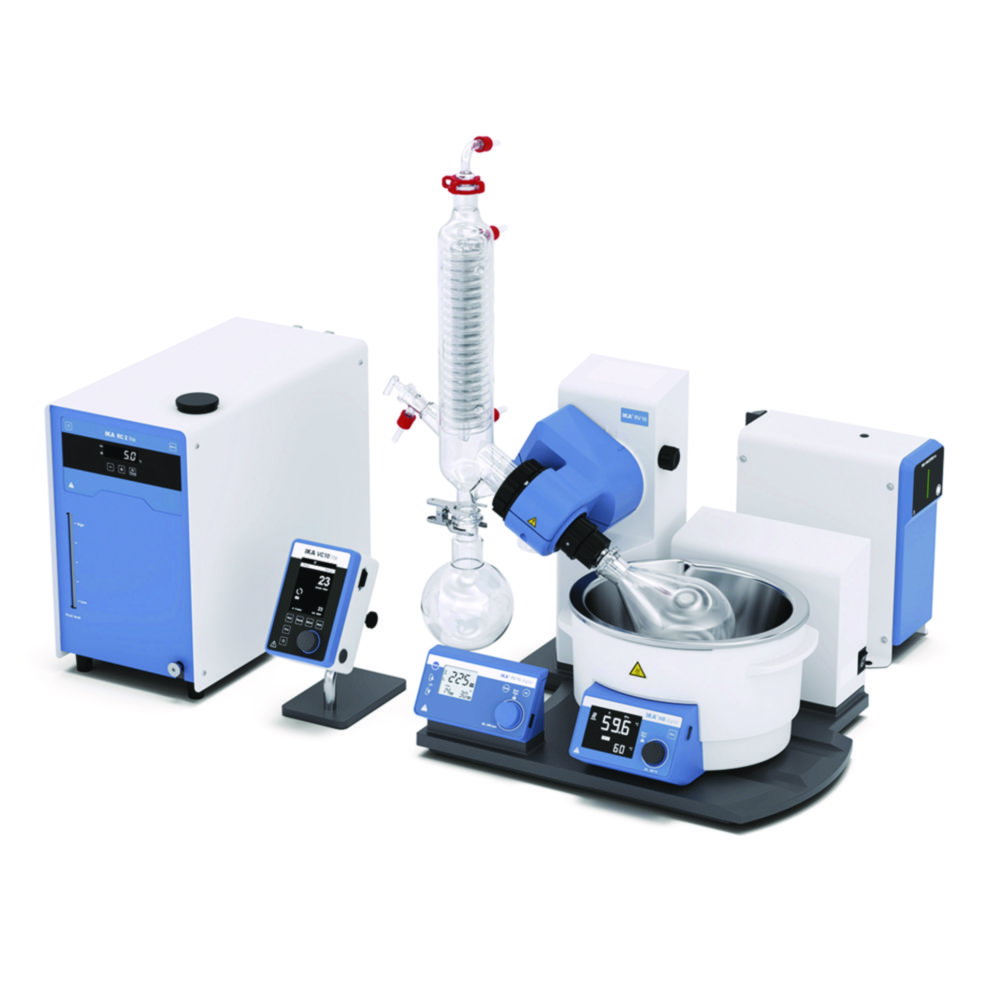

Scope of supply: rotary evaporator RV 10 digital Flex, VACSTAR lite vacuum pump, VC 10 lite vacuum controller, HB digital heating bath, vertical glass condenser set with 1 l receiver and evaporator flask, RC 2 lite recirculating chiller, stand pole, set of hoses, cable

Products specifications

Attribute nameAttribute value
CondenserVertical
Cooling <br>surface1500 cm²
Depth440 mm
Dimensions <br>(WxDxH)500 x 440 x 430 mm
Flow rate16.7 l/min
Power supply <br>frequency50/60 Hz
GlasswareWithout coating
Heating <br>capacity1300 W
Height430 mm
IP codeIP 20
LiftElectrical
Lifting path140 mm
Max. speed280 1/min
Max. temperature180 &deg;C
Max. voltage240 V
Min. <br>speed5 1/min
Min. voltage220 V
Plug typeUK
Power supply220 ... 240 V, 50/60 Hz
Speed5 ... 280 1/min
TemperatureRT, RT ... 180 °C
TypeRV 10 digital Starter Solution
Type of <br>auxiliary energyMains connection
Ultimate vacuum9 mbar
UNSPSC41104804
Weight20 kg
Width500 mm
