Rotation evaporator RV 10 auto pro V-C Complete S2 3L, 5-280 rpm, 200-240 V, 500x430x440 mm, uk-plug

Rotation evaporator RV 10 auto pro V-C Complete S2 3L, 5-280 rpm, 200-240 V, 500x430x440 mm, uk-plug
Manufacturer: IKA
SKU: 4.684 870
€11281.41 incl tax
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

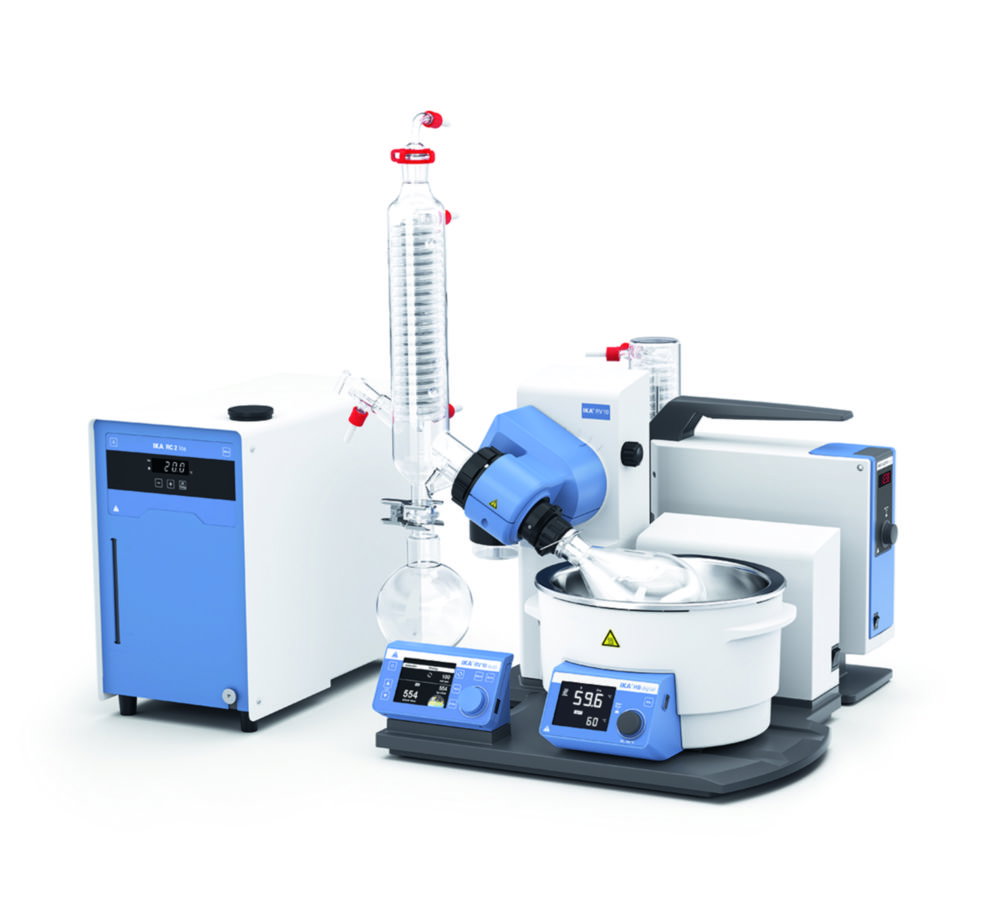

The complete solution for a rotary evaporator setup. In addition to the RV 10 auto rotary evaporator, the package includes the HB digital heating bath, the VACSTAR digital vacuum pump and the RC 2 lite circulation cooler.

  • Rotary evaporator RV 10 auto with intuitive TFT colour display and integrated vacuum controller with automatic control of the vacuum and cooling water monitoring

  • Vacuum pump VACSTAR digital achieves a minimum vacuum of 2 mbar, is controlled directly by the RV 10 auto drive unit via the data cable supplied

  • Circulating cooler RC 2 lite with 400 W cooling capacity and pressure and suction pump with 0.35 bar for simple cooling tasks down to -10 °C


Scope of supply: RV10 control rotary evaporator, RV 10.10 glassware, RV 10.70 vapour feed-through tube, HB digital S099 heating bath, VACSTAR digital vacuum pump, H.SI.8 vacuum hose, VSE 1 condenser, RC 2 lite circulation cooler, H 11 mains cable

Products specifications

Attribute nameAttribute value
CondenserVertical
Cooling <br>surface1600 cm²
Depth440 mm
Dimensions <br>(WxDxH)500 x 440 x 430 mm
Power supply <br>frequency50/60 Hz
GlasswareCoated
Heating <br>capacity1300 W
Height430 mm
IP codeIP 20
LiftElectrical
Lifting path140 mm
Max. speed300 1/min
Max. temperature180 &deg;C
Max. voltage240 V
Max. volume bath3 l
Min. <br>speed5 1/min
Min. voltage220 V
Plug typeUK
Power supply220 ... 240 V, 50/60 Hz
Speed5 ... 300 1/min
TemperatureRT, RT ... 180 °C
TypeRV 10 auto pro V-C Complete
Type of <br>auxiliary energyMains connection
Ultimate vacuum1050 mbar
UNSPSC41104804
Weight21.5 kg
Width500 mm
