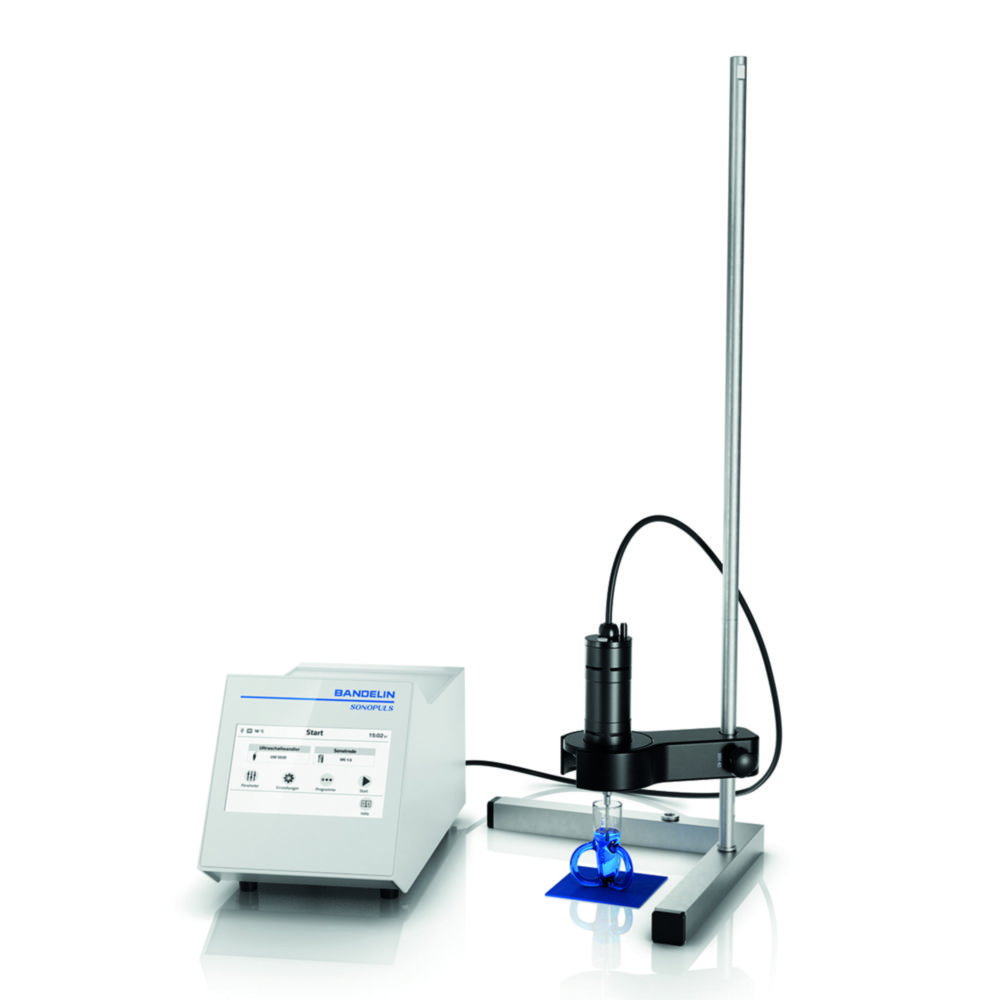

SONOPULS HD 5200 UK plug

SONOPULS HD 5200 UK plug

Manufacturer: Bandelin

SKU: 4.719 962

Vendor: Labfriend Pty Ltd

€3774.17 incl tax

Qty:

For volumes from 5 to 1000 ml (depending on the sonotrode used).

Ready-to-operate set for volumes from 20 to 900 ml consisting of:

Ultrasound generator GM 5200

Ultrasonic transducer UW 5200

Booster horn SH 200 G

Sonotrode TT 213, Ø 13 mm

Tool for mounting the probes

Temperature sensor and further titanium sonotrodes are available separately.

Products specifications

Attribute name	Attribute value
Amplitude	10 ... 100 %
Depth	385 mm
Power supply <br>frequency	50/60 Hz
Height	215 mm
IP code	IP 30
Max. amplitude	100 %
Max. voltage	230 V
Max. working <br>volume	900 ml
Min. amplitude	10 %
Min. <br>working volume	20 ml
Plug type	UK
Power supply	230 V, 50/60 Hz
Rated capacity	200 W
Type	HD 5200
Type of <br>auxiliary energy	Mains connection
Ultrasonic <br>frequency	20 kHz
UNSPSC	41102914
Weight	3.1 kg
Width	195 mm
Working volume	20 ... 900 ml
