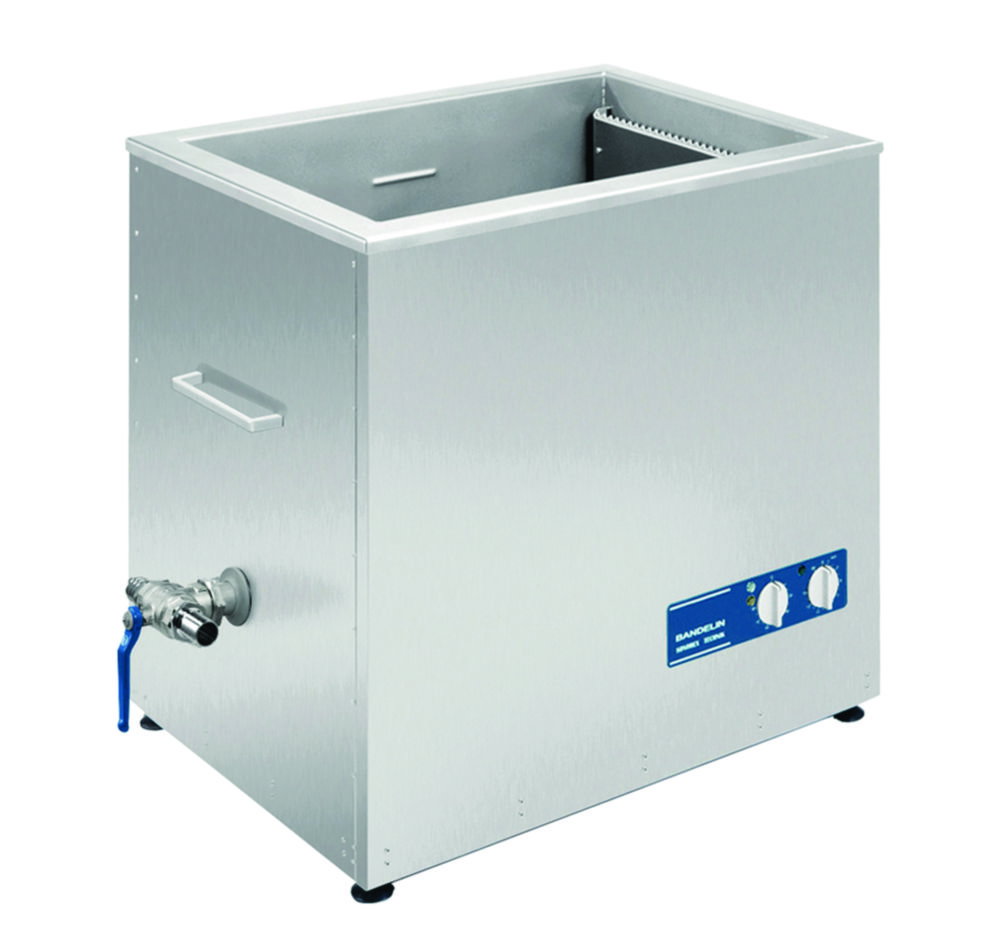

SONOREX TECHNIK RM 110 UH

SONOREX TECHNIK RM 110 UH
Manufacturer: Bandelin
SKU: 4.720 301
€8519.80 incl tax
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Ultrasonic baths for industry, service and maintenance. The welded ultrasonic tank made of stainless steel 1.4404, 2 mm thick, guarantees maximum durability even with intensive use. A modular design enables a wide range of configurations, ranging from individual cleaning tanks to complete cleaning lines. The integrated overflow pocket is used to connect an oil separator for separating cleaned oil films from the cleaning solution.

  • Spray tube for removing floating oils from the liquid surface into the overflow pocket

  • Level switch as dry-boil protection for heating and ultrasonic transmitter

  • Round bath corners on the sides and base make cleaning the bath easier

  • Height-adjustable feet

Products specifications

Attribute nameAttribute value
Depth <br>int.450 mm
DisplayAnalogue
Ext. dim. <br>(WxDxH)780 x 550 x 800 mm
Ext. depth550 mm
Ext. <br>height800 mm
Ext. <br>width780 mm
Power supply <br>frequency50/60 Hz
Heating <br>capacity4800 W
Height <br>int.450 mm
Int. Dim. <br>(WxDxH)600 x 450 x 450 mm
Int. <br>width600 mm
IP codeIP 32
Max. temperature80 &deg;C
Max. voltage400 V&middot;3/N/PE
Min. <br>temperature30 &deg;C
Nominal capacity110 l
OperationRotary knob
Plug typeEU
Power supply400 V·3/N/PE, 50/60 Hz
Temperature30 ... 80 °C
TypeRM 110 UH
Type of <br>auxiliary energyMains connection
Type of displayWithout display
Ultrasonic <br>frequency25 kHz
Ultrasonic <br>power1000 W
UNSPSC41102929
Weight72 kg
With stopcockYes
