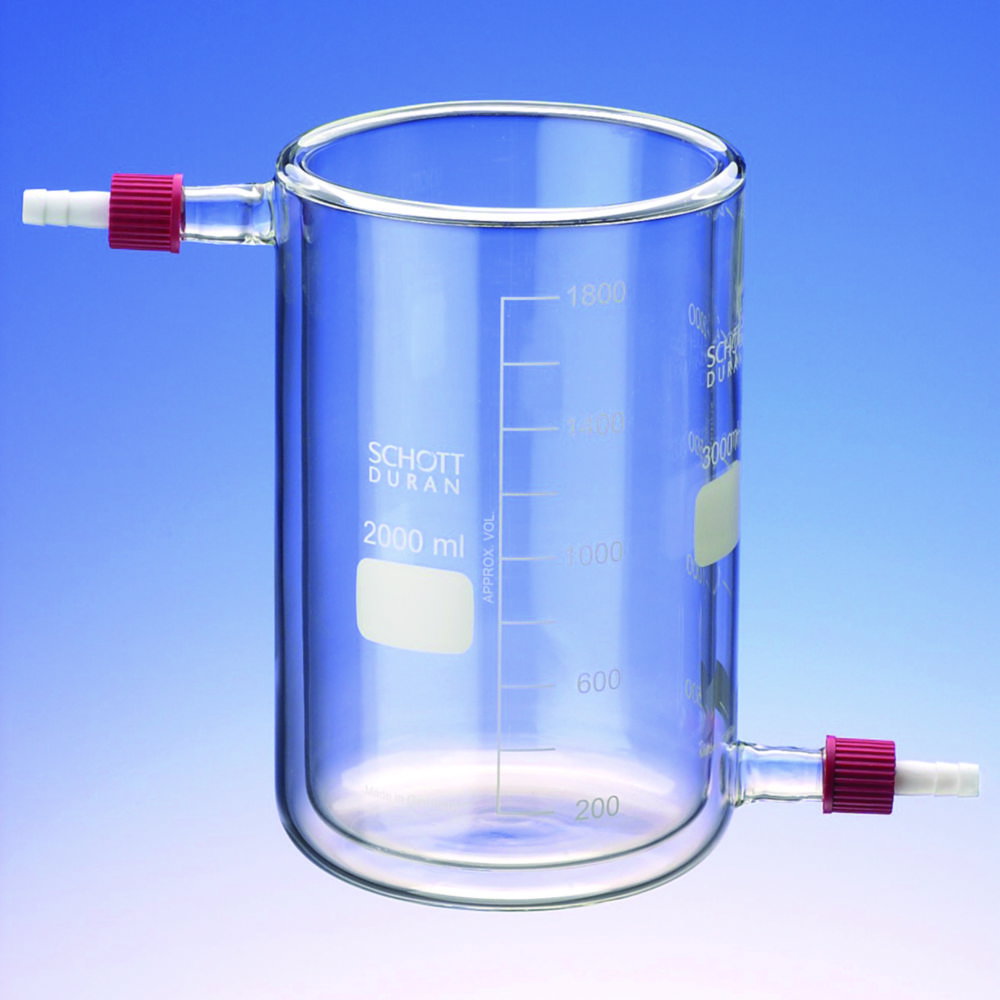

Tempering beaker Type T-GL 2000 2000 ml, GL18, DURAN, 200x112mm

Tempering beaker Type T-GL 2000 2000 ml, GL18, DURAN, 200x112mm
Manufacturer: KGW Isotherm
SKU: 9.032 377
Delivery date: 14 Business Days
€243.68 incl tax
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
DURAN®. For heating and cooling liquids. Thermostatting liquid is circulating between the double walls of the beaker jacket. With glass-screw connections GL14 with PTFE olives (O.D. 9mm, T-GL2000 with GL18 and O.D. 11mm) for thermostat hoses. Coolant ram pressure: 0.5bar at maximum, operating temperature: +120°C at maximum. Special sizes available on request.

Products specifications

Attribute nameAttribute value
ConnectionPTFE olive
Dim. ext. <br>(Ø x H)135 x 210 mm, 112 x 200 mm
Ext. Ø135 mm
Ext. <br>height210 mm
Height <br>int.200 mm
Int. Ø112 mm
MaterialBoro 3.3
Max. coolant <br>pressure0.5 bar
Max. temp.<br>resistance120 &deg;C
Nominal capacity2000 ml
Olives <br>ext. Ø11 mm
Temperature <br>resistance120 °C
ThreadGL 18
UNSPSC41121803
