Vacuum Pump Vacstar lite Advanced Plus Solution UK plug

Name: Vacuum Pump Vacstar lite Advanced Plus Solution UK plug
SKU: 4.715 669
Price: 2969.64 EUR
Availability: InStock

Manufacturer: IKA

SKU: 4.715 669

€2969.64 incl tax

Qty:

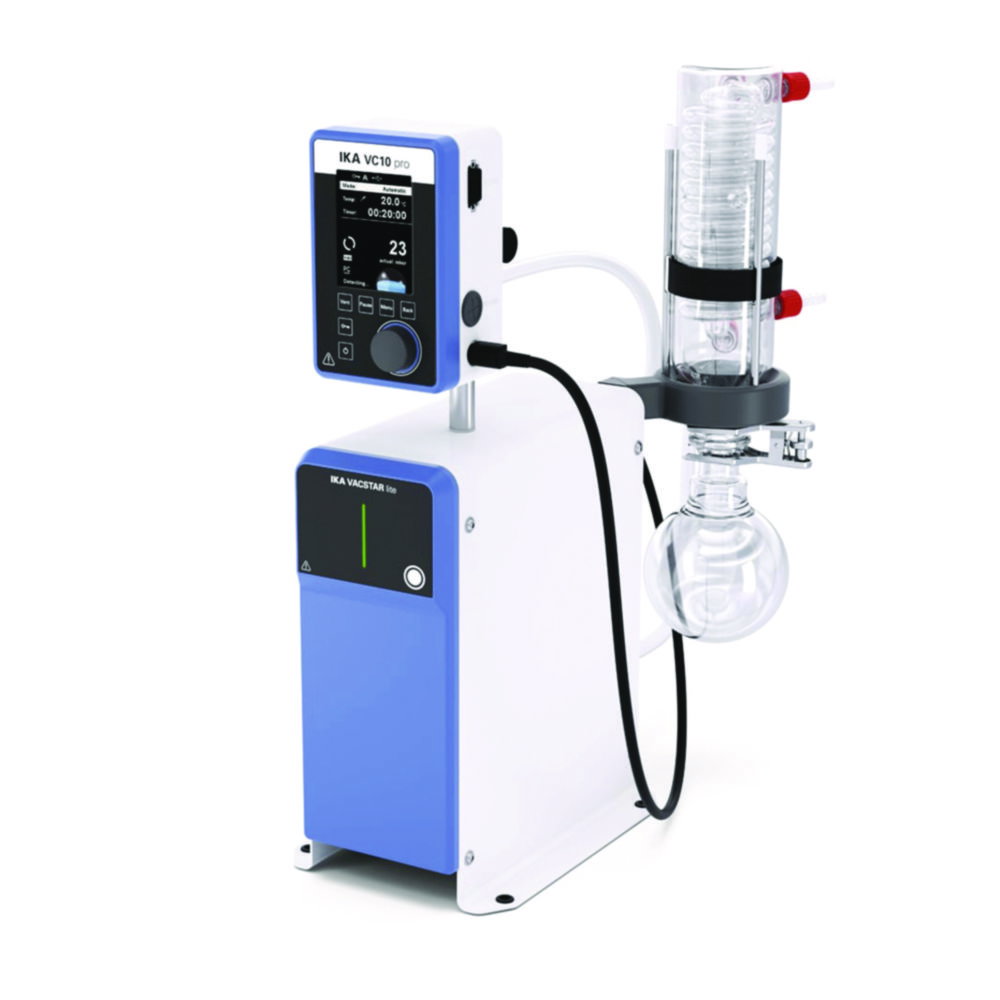

Scope of supply: Diaphragm vacuum pump VACSTAR lite, vacuum controller VC 10 pro, emission condenser VSE 1, stand rod

Products specifications

Attribute name	Attribute value
Connection <br>pressure side	DN 8
Connection <br>suction side	DN 8
Depth	377 mm
Dimensions <br>(WxDxH)	260 x 377 x 502 mm
Flow rate	1 m³/h
Power supply <br>frequency	50/60 Hz
Height	502 mm
IP code	IP 20
Max. permitted <br>ambient temp.	40 °C
Max. voltage	240 V
Min. permitted <br>ambient temperature	5 °C
Min. voltage	100 V
No. of <br>stages	2
Noise level	54 db(A)
Plug type	UK
Power supply	100 ... 240 V, 50/60 Hz
Rated capacity	144 W
Type	VACSTAR lite Advanced Plus Solution
Type of <br>auxiliary energy	Mains connection
Ultimate vacuum	9 mbar
UNSPSC	40151502
Weight	11.2 kg
Width	260 mm
