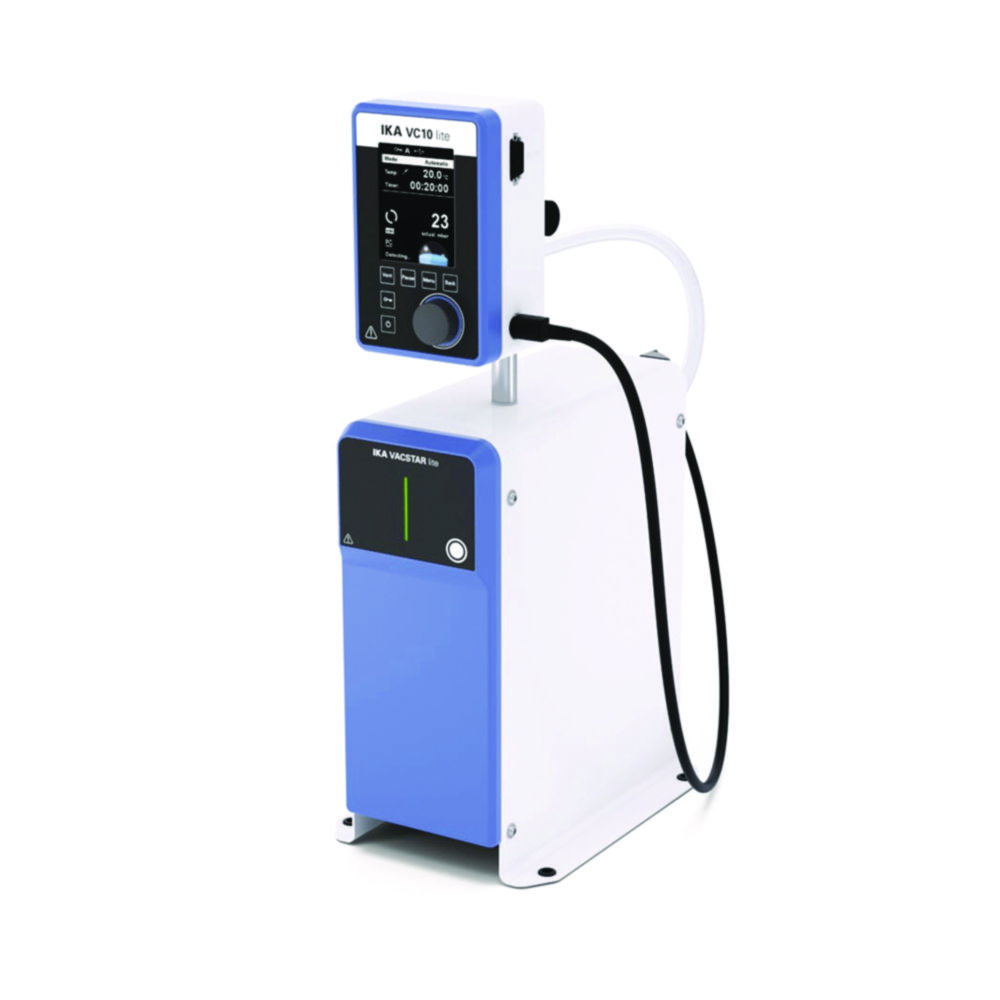

Vacuum Pump Vacstar lite Starter Solution CH plug

Name: Vacuum Pump Vacstar lite Starter Solution CH plug
SKU: 4.715 754
Price: 2022.12 EUR
Availability: InStock

Manufacturer: IKA

SKU: 4.715 754

€2022.12 incl tax

Qty:

Scope of supply: Diaphragm vacuum pump VACSTAR lite, vacuum controller VC 10 lite, stand rod

Products specifications

Attribute name	Attribute value
Connection <br>pressure side	DN 8
Connection <br>suction side	DN 8
Depth	280 mm
Dimensions <br>(WxDxH)	115 x 280 x 445 mm
Flow rate	1 m³/h
Power supply <br>frequency	50/60 Hz
Height	445 mm
IP code	IP 20
Max. permitted <br>ambient temp.	40 °C
Max. voltage	240 V
Min. permitted <br>ambient temperature	5 °C
Min. voltage	100 V
No. of <br>stages	2
Noise level	54 db(A)
Plug type	CH
Power supply	100 ... 240 V, 50/60 Hz
Rated capacity	144 W
Type	VACSTAR lite Starter Solution
Type of <br>auxiliary energy	Mains connection
Ultimate vacuum	9 mbar
UNSPSC	40151502
Weight	9.8 kg
Width	115 mm
